Description

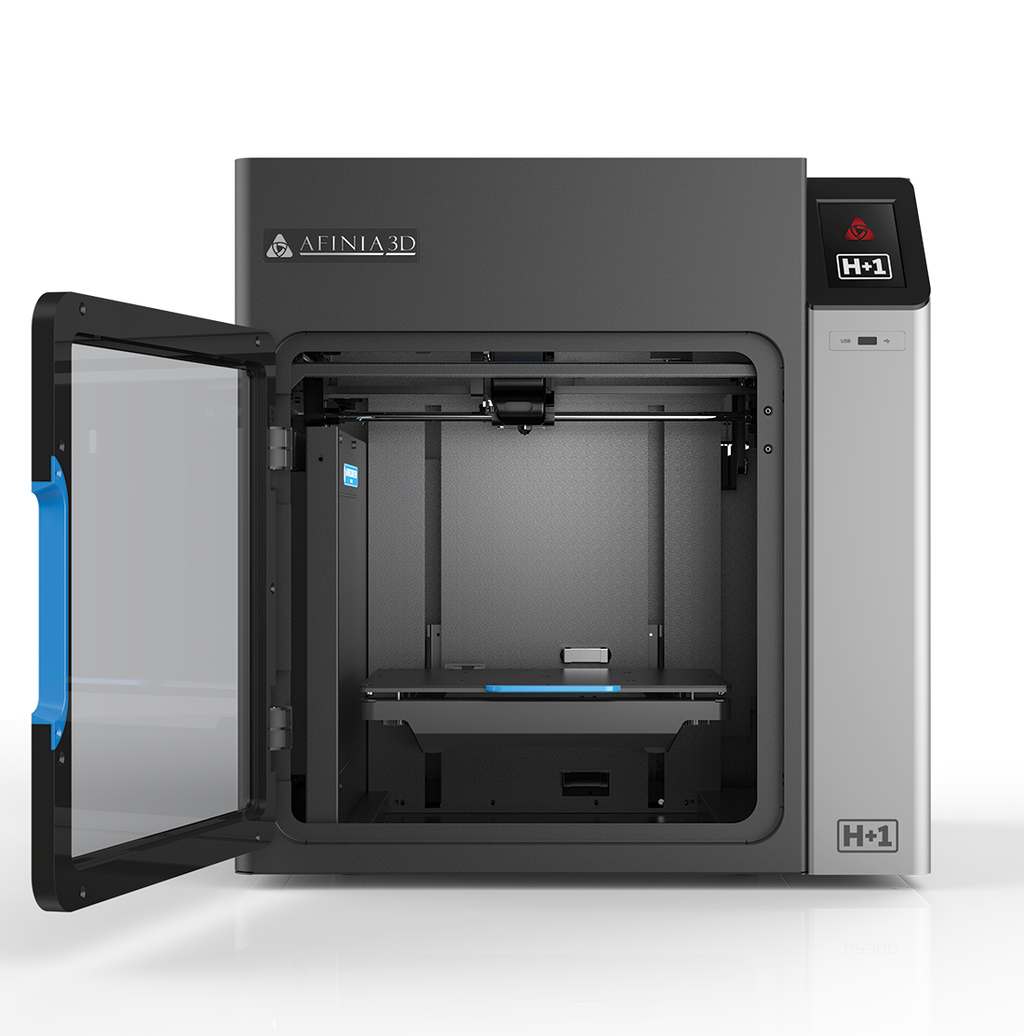

Afinia H+1 3D Printer 33359
The Afinia H+1 3D printer combines a large build volume with consistency of performance. Material-specific printheads are included, ensuring optimal print quality and compatibility across a wide range of filament types.
Features
- *Material-specific printhead system for optimal quality and compatibility
- *Circulating dual-filtered system
- Automated leveling and height sensing

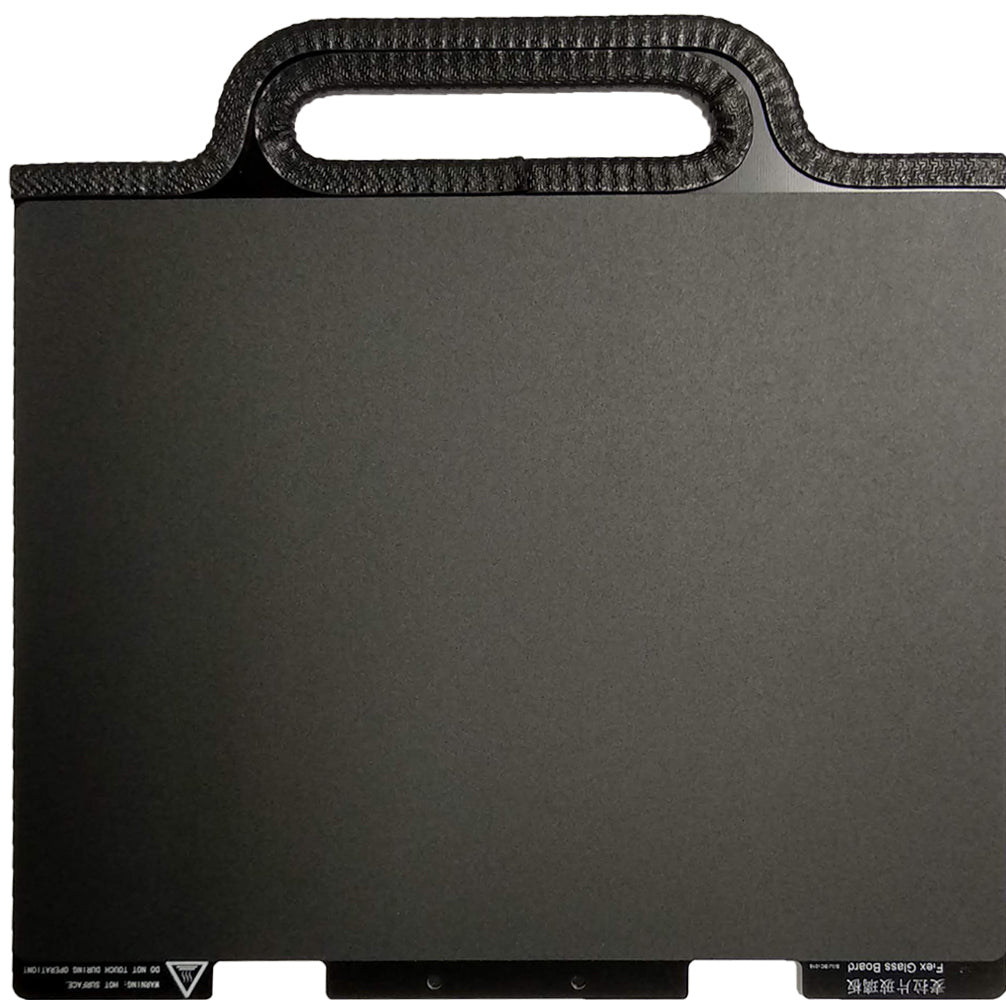

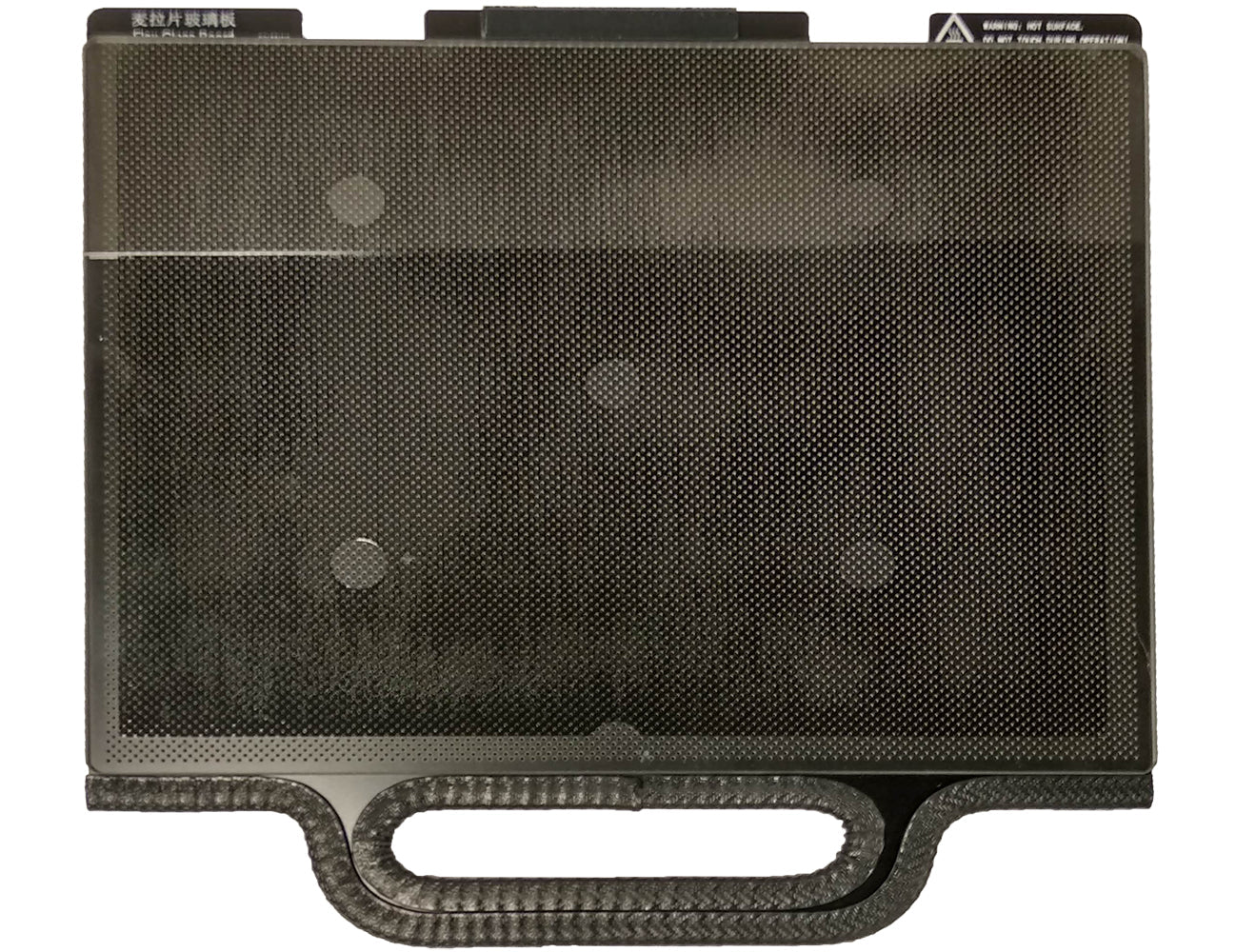

- *2-sided interchangeable build plates
- Power loss print recovery filament run-out detection
- *Customizable temperature controls & filament profiles
- Print queue for auto job management
- Large build volume (10x8x8.8 inches)
- *Enclosed, heated platform & chamber
- Smart support material technology
- Multiple connectivity options (WiFi, USB, LAN, & USB Flash Drive)
* New to the H+1
Out-of-the-Box 3D Printing
The Afinia H-Series 3D Printers provide a true “Out-of-the-Box 3D Printing Experience” as the 3D Printers comes fully assembled with easy-to-install software for both the PC and Mac.
Improved Material Compatibility
The Afinia H+1 comes with three material-specific printheads: ABS, PLA, and TPU. In contrast to the one-size-fits-all extruder, these interchangeable heads are designed specifically for each material’s characteristics, allowing for greater filament control and a better finish.
Full metal printhead tailored to high temperature material
- ABS, ABS+
- ASA
- PETG
- Polycarbonate
- Polypropylene
- Nylon
- Carbon Fiber filled depends on base material
Effective cooling system and PTFE feed path tailored to low temperature material
- PLA
- Metal Filled PLA
- Wood Filled PLA
- Carbon Fiber filled depends on the base material
Spring loaded feed path, double gear, PTFE feed path and larger nozzle size tailored to flexible material
- TPU and flexible filament

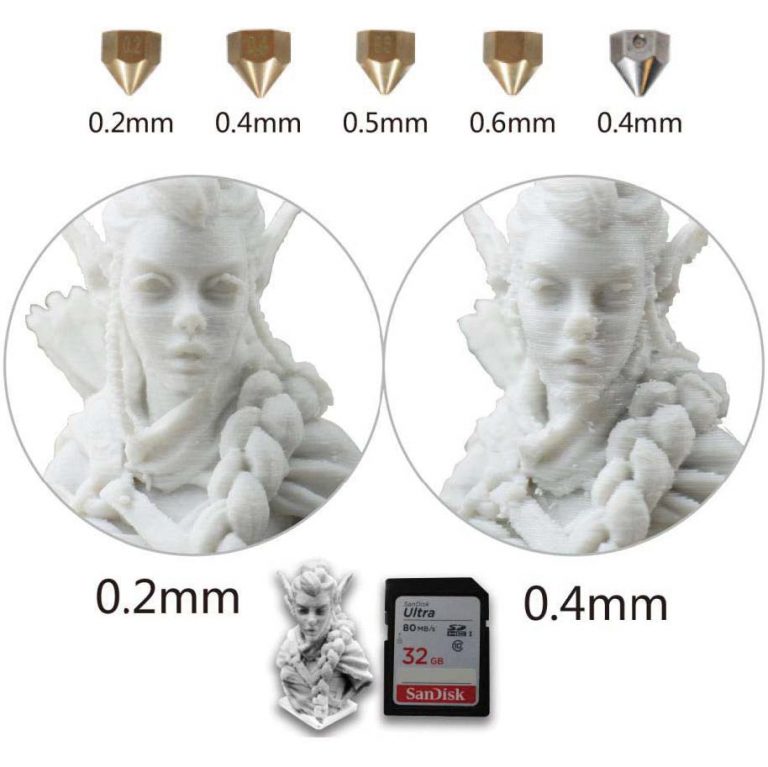

A selection of included nozzles offers even more control and quality. Print profiles and resolutions are optimized for certain nozzle sizes.
Better ABS Print Quality
ABS, known for its toughness and impact resistance, allows you to print durable parts that will hold up to extra usage and wear. Because of these characteristics, ABS material has been a favorite 3D printing material for engineers. However, due to its sensitivity to environmental conditions and smell, it is is often difficult to use with desktop 3D printers.
Afinia’s comprehensive solution for better ABS printing comes down to three important things:
- Better ABS material
- Software-driven improvements to print raft and print support
- Hardware features related to heating, platform materials, and air filtration
Circulating Filtered Chamber

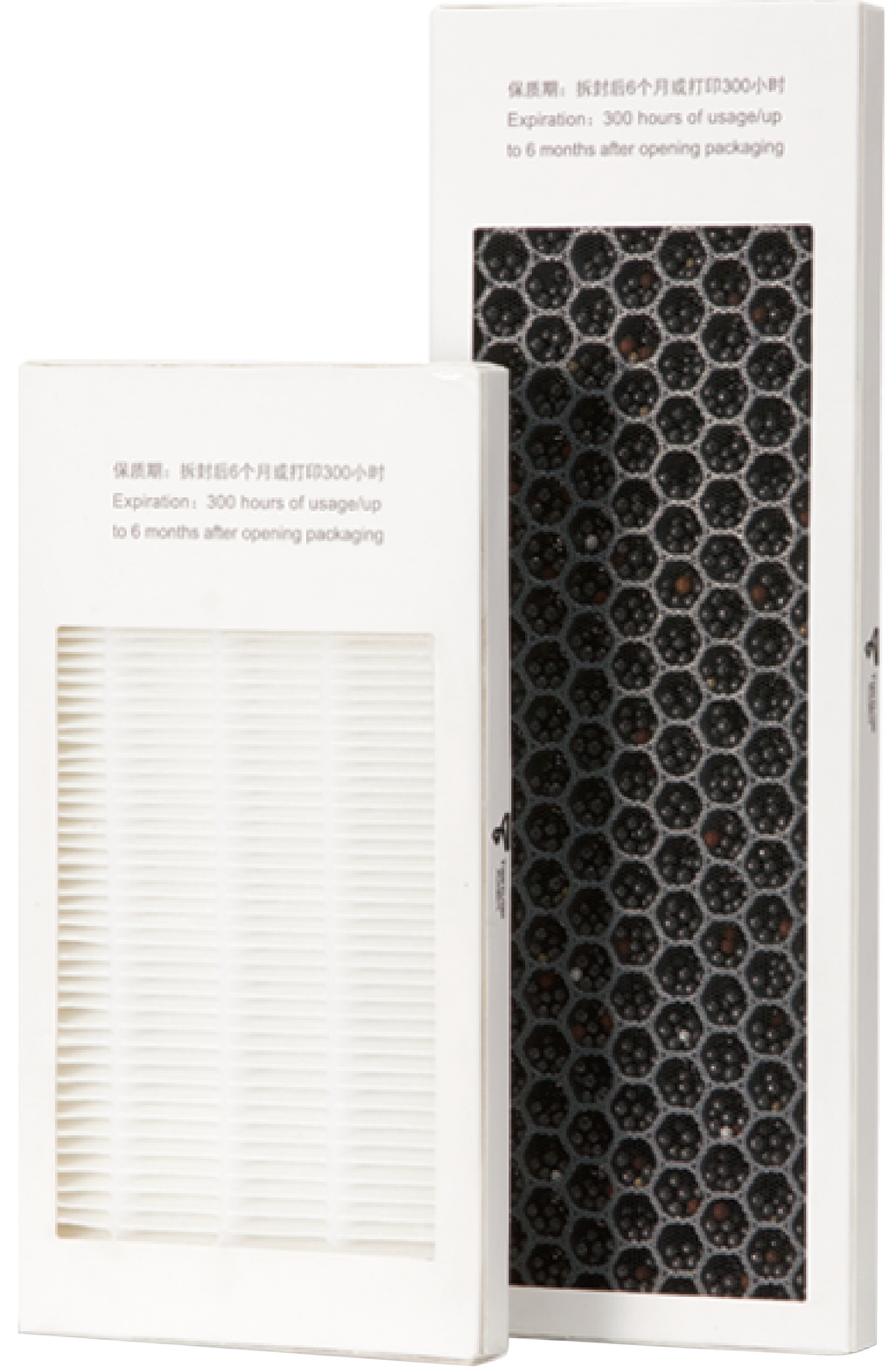

The H+1 has a large HEPA and separate Activated Carbon filter for ultimate air filtration. The H+1 uses a centrifugal fan to constantly circulate and purify air within the enclosure through both filters. Higher airflow capacity maintains minimal UFP and VOC density inside the printer.
Easy to Use, Powerful Software
The 3D Printer Software features an easy-to-use interface for laying out, orienting, duplicating, and scaling parts. Simply use the included utility to calibrate the printhead height, and within minutes you are printing. It easily imports STL files, and the output can be customized in terms of the amount of support material and “raft” (base support) printed. Break-away support material is simple to remove, and tools for aiding the break-away are included. Design files for 3D printing can be created using online software, professional software such as SolidWorks™, or by downloading from the extensive online 3D printer community for free.
Resources
Specs
| Build Volume | 10″ W x 8″ D x 8.8″ H(255 x 205 x 225mm) |
|---|---|
| HD Print Quality | 0.05mm (100 micron), 0.1 mm, 0.15 mm, 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm |
| Smart Support | Support material automatically created by 3D printing software |
| Safety | Built-in HEPA and activated carbon filters remove microfine particles |
| Display | 4.3″ full-color touchscreen LCD |
| File Formats | .stl, .obj, .3mf, .up3, .ups, .ply, .off, .3ds, .gcode |
| Dimensions | 19.6″ W x 18.1″ D x 20.5″ H(460 x 500 x 523mm) |
| Weight | 66.2 lbs (30 kg) |
| Power | 110-220VAC, 50-60Hz, 220W;With power loss print recover |
| Connectivity | WIFI, USB, USB Flash Drive, LAN (with ability to disconnect from computer when print job starts |
| Materials | 1.75mm ABS, PLA, TPU, PC, PETG, or Flexible Filament; With filament run-out protection(included: 1 x 500g spool of filament) |
| Software | Windows 7 or higher (32/64 bit)and MAC OSX 10.7+, iOS |
About Afinia 3D
In 2009, Afinia 3D was founded to offer specialty printing solutions with best-in-class support, and at an accessible price. We saw the power of 3D printing in industrial design, and knew there could be the same great benefits for the consumer market. Vice President John Westrum explains, “We saw some basic 3D printers geared towards consumers, but they were hard to use. Also, the customer support was basically non-existent. We decided to come out with a high-quality, low-cost printer, and use what we learned from our duplication business to provide a level of customer support and ease of use that’s not matched by any other company in the space.”
We now have an excellent reputation among the education, engineering, and hobbyist markets for our reliable, accurate, and easy-to-use 3D printers and 3D scanners.
