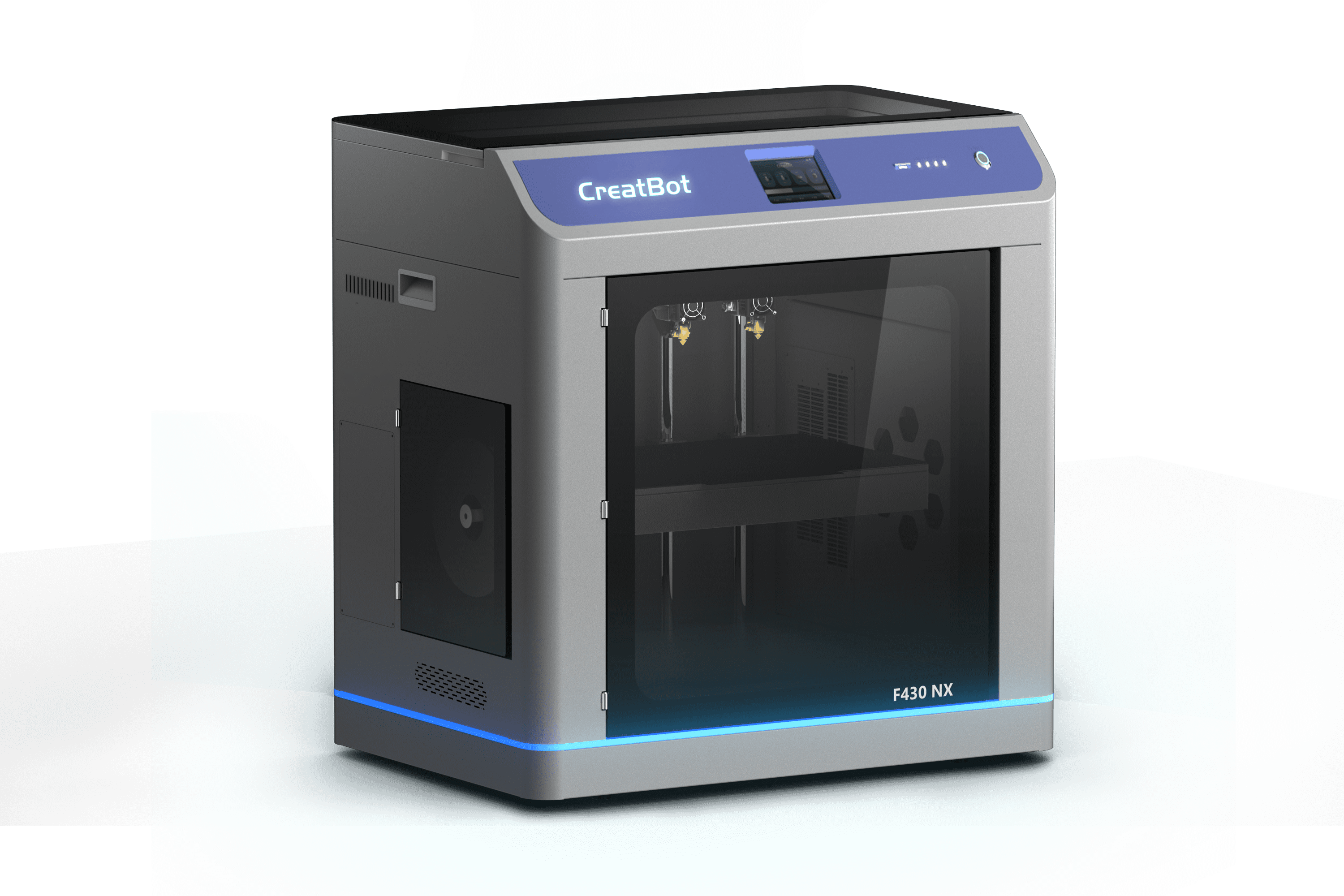

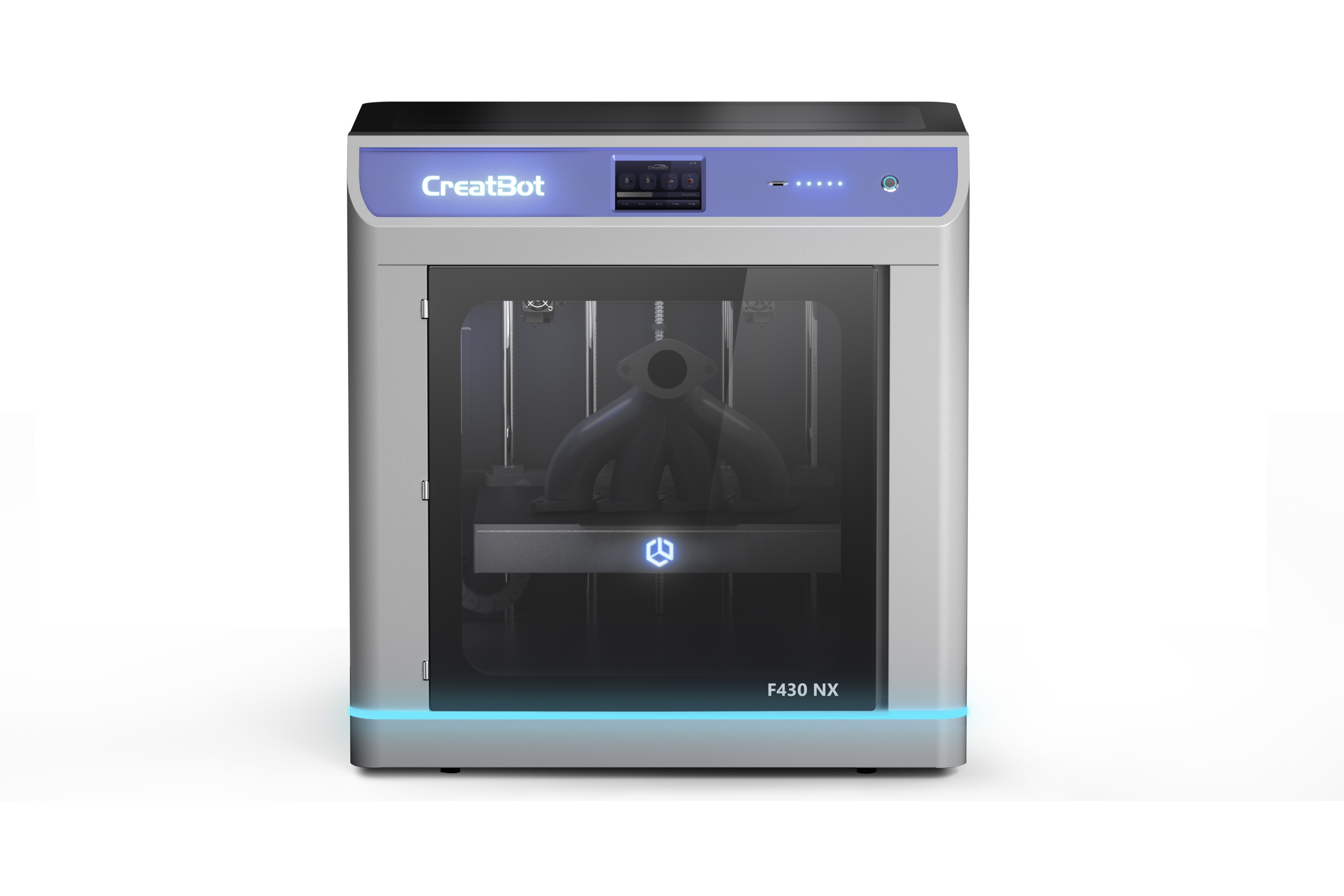

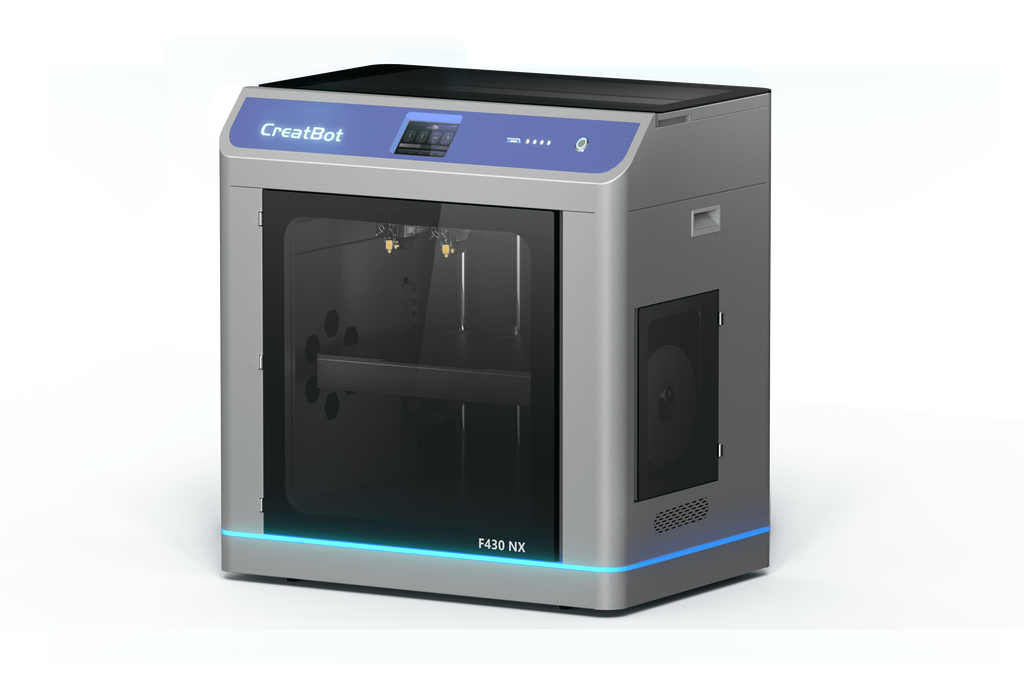

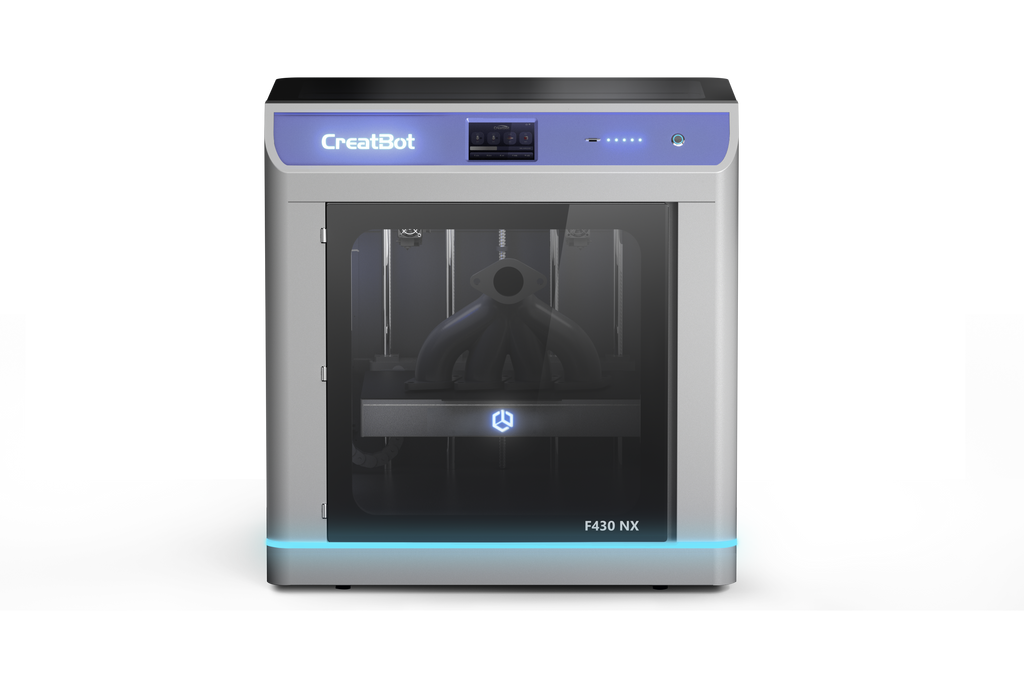

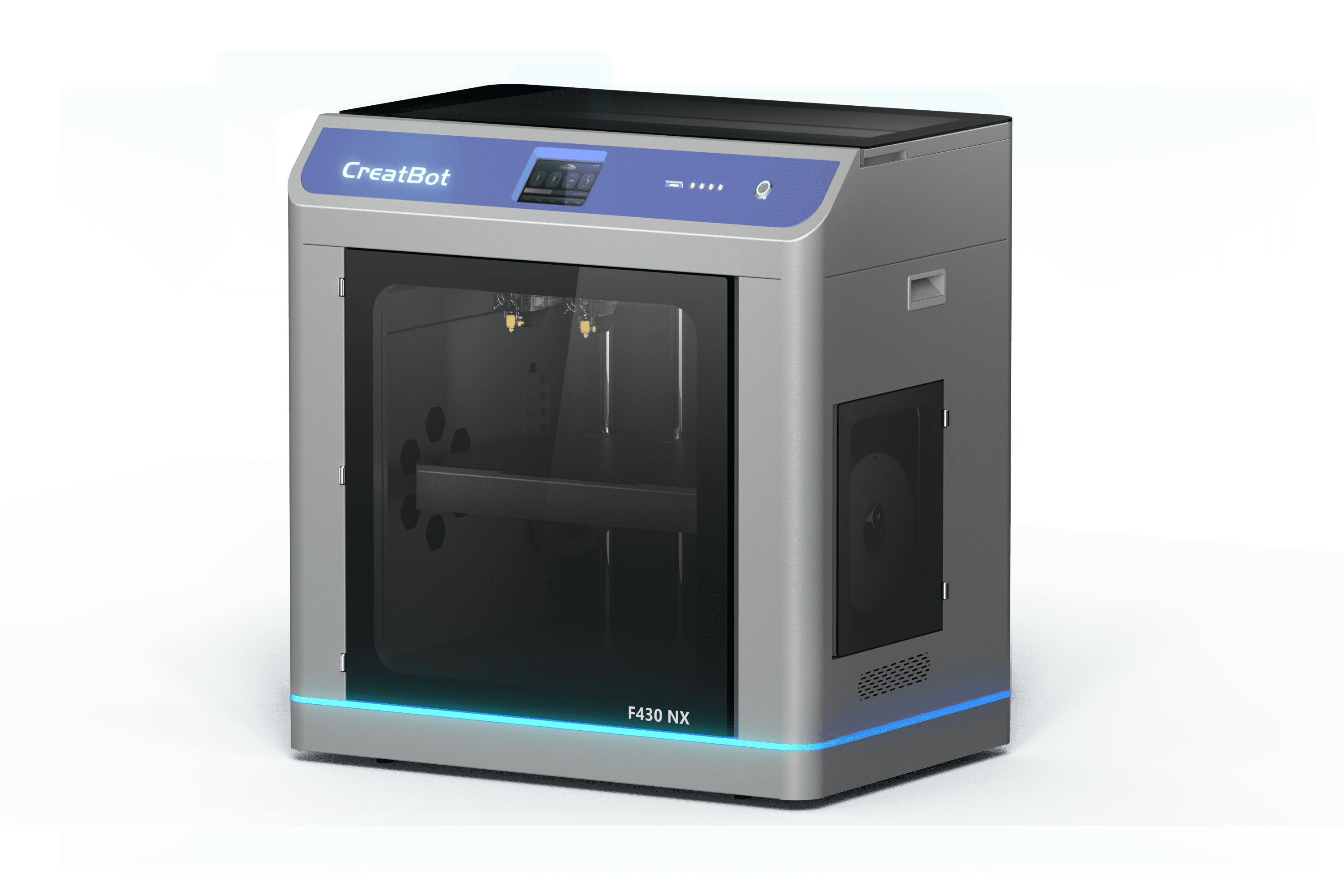

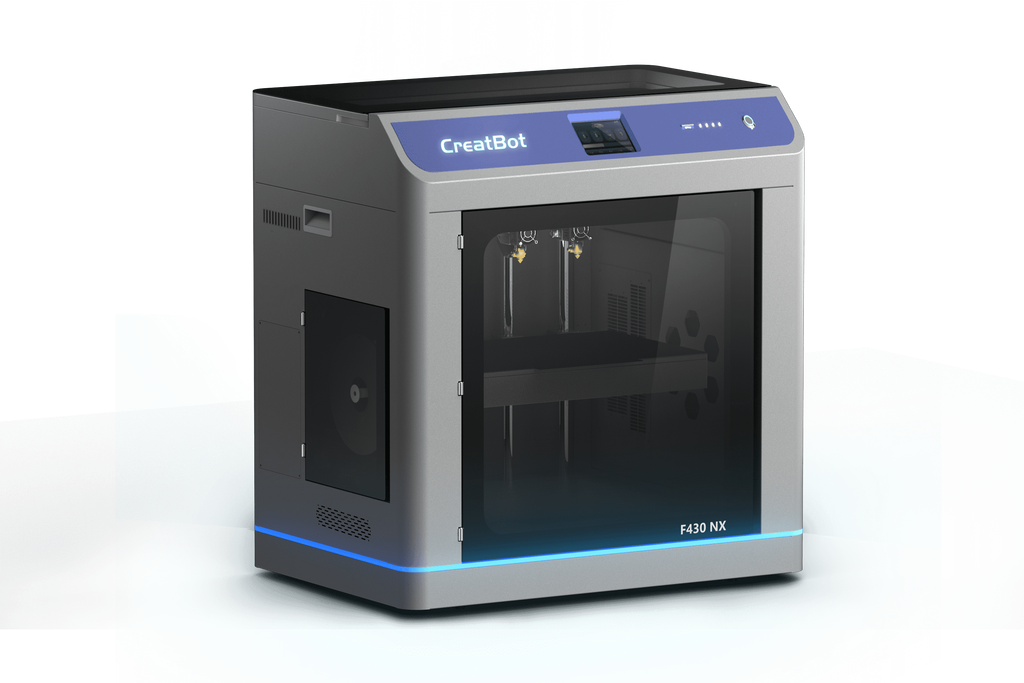

CreatBot F430 NX Professional-Grade High-Speed 3D Printer
A new generation of professional-grade high-speed 3D printer
The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers, with a cumulative global sales volume of more than 5,000 units. Now, the new generation product F430 NX of this series has been released. It has a more advanced design concept and improved technical capabilities. It has a brand-new appearance design; high-precision machined parts are used as the structural framework; the independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible with high-performance consumables and high-speed printing. The operation process is simpler, and the 7/24 operation is more stable. In the professional field, it will be your first choice.
Why Choose to Purchase from MachineShark?
MachineShark guarantees the best price and service available online. We promise fast and free shipping directly from the Creatbot USA warehouse. We work very closely with Creatbot allowing our customers to receive the quickest and the most helpful support. We ensure products are shipped out in perfect condition and offer lifetime support.
Use Code "CREATBOT7" at checkout for 7% Off + FREE Shipping from the USA Warehouse & No added taxes.
Check off the add-on boxes to receive FREE Filament!
FEATURES
SPECIFICATIONS
MODEL COMPARISONS
|
D1000 HS |
D600 Pro 2 |
D600 Pro |
PEEK-250 |
PEEK-300 |
F430 |
F160 |
| Build Size (L*D*H) |
1000*1000*1000mm |
600*600*600mm |
600*600*600mm |
250*250*300mm |
300*300*400mm |
400*300*300mm |
160*160*200mm |
| Shaft Structure |
Gantry (Linear Module) |
Gantry (Linear Module) |
Gantry (Linear Module) |
Core XY |
Core XY |
Gantry |
Core XY |
| Print Head System |
Dual gear lifting extruder |
Dual gear lifting extruder |
Single gear extruder |
Dual gear extruder |
Dual gear lifting extruder |
Single gear extruder |
Single gear extruder |
| Nozzle Qty |
Dual |
Dual |
Dual |
Single |
Dual |
Dual |
Single |
| Printing Speed |
15-300mm/s |
15-300mm/s |
15-150mm/s |
15-120mm/s |
15-120mm/s |
15-150mm/s |
15-120mm/s |
| Layer Resolution |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
0.02mm |
0.02mm |
0.01mm |
| Screen |
Touch 10.1" |
Touch 7.0" |
Touch 4.3" |
Touch 7.0" |
Touch 4.3" |
Touch 4.3" |
Touch 4.3" |
| Nozzle Temperature |
0~420°C |
0~420°C |
0~420°C |
0~480°C |
0~480°C |
0~420°C |
0~420°C |
| Hot Bed |
0~100°C |
0~100°C |
0~100°C |
0~200°C |
0~200°C |
0~140°C |
0~150°C |
| Hot Air System |
Max.60°C |
Max.70°C |
Max.70°C |
Max.200°C |
Max.120°C |
Max.70°C |
Max.70°C Peek
|
| Filaments Drying |
0~70°C |
0~70°C |
0~70°C |
- |
0~70°C |
- |
- |
| HEPA Filter |
⚫ |
⚫ |
⚫ |
⚫ |
⚫ |
⚫ |
- |
| Emergency Stop |
⚫ |
⚫ |
⚫ |
- |
⚫ |
- |
- |
| Servo Motor |
X/Y |
X/Y |
X/Y |
- |
- |
- |
- |
| Auto Bed leveling |
Automatic |
Automatic |
Automatic |
- |
Automatic |
Automatic |
- |
| Storage Media |
WIFI/USB |
WIFI/USB |
USB Disk |
WIFI/USB |
USB Disk |
USB Disk |
USB Disk |
| Rated Power |
9500W |
5500W |
4900W |
2500W |
4600W |
2700W |
340W/1100W PEEK |
| Input Voltage |
220V |
220V |
220V |
220V |
220V |
110V/220V |
110V/220V |
| Packing Size |
1910*1510*2205mm |
1150*1000*1410mm |
630*555*815mm |
1910*1510*2205mm |
650*600*750mm |
750*580*720mm |
470*420*600mm |
| Packing Weight |
760kg |
245kg |
180kg |
120kg |
140kg |
65kg |
25kg |
RESOURCES
User Manual
CreatWare Printing Software Download
About CreatBot
CreatBot
CreatBot was established in 2011 and has now become one of the largest professional 3D printer manufacturers in central China.
CreatBot provides reliable, efficient and professional 3D printing solutions to business markets where safety, quality and tangible results justify investments. From trusted, high-performance machines with dedicated software to a vast range of printing materials, our products are both innovative and accessible. CreatBot is a solid partner who supplies your business with the latest 3D printing technologies to enhance your projects, minimize product development timelines and push you forward ahead of the competition.
