DJI AGRAS MG-1P Series 10L Spraying Drone | Agriculture | Professional Use

Product Description

DJI AGRAS MG-1P Series 10L Spraying Drone | Agriculture | Professional Use

DESCRIPTION

The DJI AGRAS MG-1P Series is the ultimate solution for modern agricultural needs. Designed to deliver precision, efficiency, and safety, this drone integrates advanced technologies such as high-precision radar, FPV cameras, and RTK positioning for flawless field operations. With a liquid capacity of 10L, the MG-1P ensures uniform spray coverage while the advanced radar system provides unparalleled obstacle detection and terrain adaptation. The innovative multi-aircraft control mode allows simultaneous operation of up to five drones, making it an ideal choice for large-scale agricultural tasks.

AGRAS MG-1P SERIES

Innovative Insights. Increased Efficiency.

Multi-Aircraft Control Mode

Doubled Efficiency and Control Range

A single MG-1P controller can control up to five MG-1P aircrafts simultaneously, doubling the efficiency of single-pilot operations.This new intelligent remote controller extends the control range to up to 3 km^[1] and supports high-resolution video transmission within that range, ensuring flight safety.The new remote controller also supports 4G wireless communications, an interchangeable battery, and new antenna design, providing even more convenience for daily operations.

FPV Camera

Safety with Vision

MG-1P series drones are equipped with 123° FOV wide-angle cameras that transmit clear, front-facing live views. For long distance operation, the remote controller’s built-in display indicates obstacle avoidance information to ensure safety. With the help of the FPV camera feed, users can effortlessly record A/B points or waypoints, increasing work accuracy and efficiency.

Flight Performance

Stable, Reliable, and Worry-Free

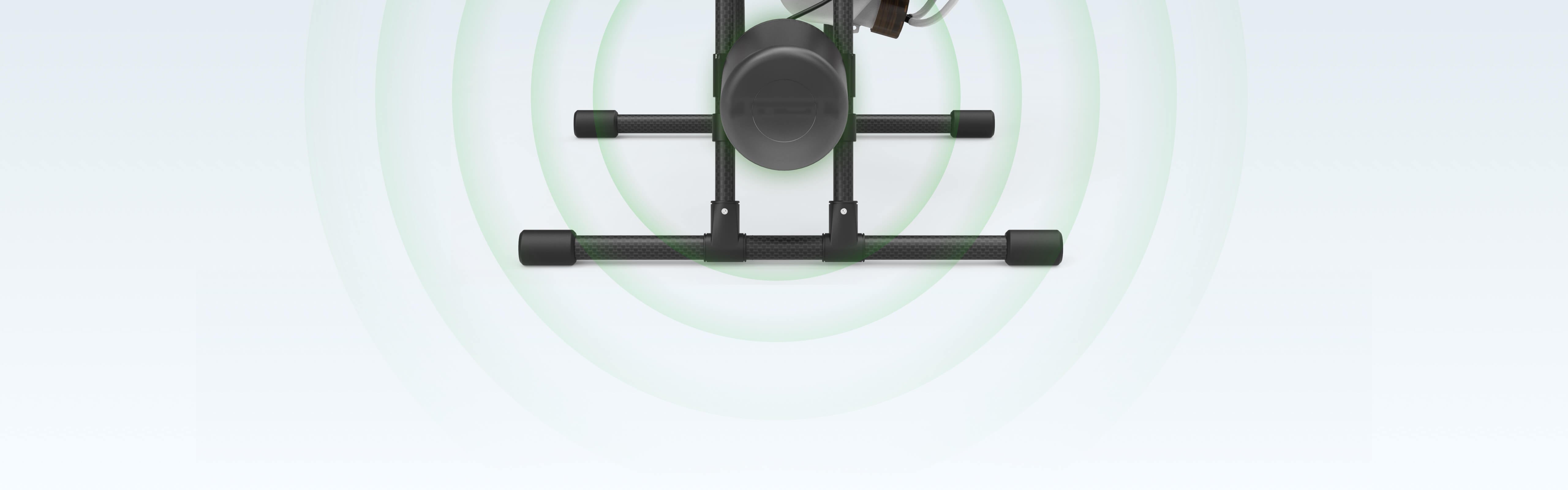

Upgraded High-Precision Radar

Comprehensive Safety

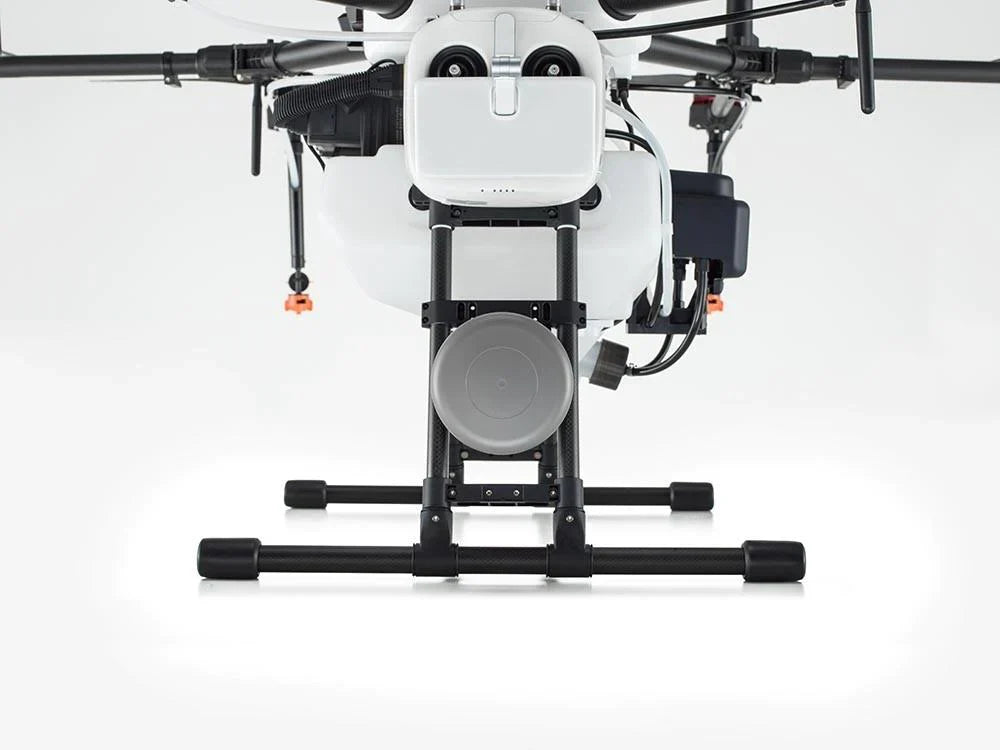

The MG-1P’s improved radar system integrates the three high-precision terrain detection radars from previous MG-1S aircraft with an obstacle avoidance radar. This doubles detection sensitivity and allows for multi-directional detection,^[2]significantly increasing the aircraft’s ability to sense obstacles and follow terrain automatically. The MG-1P can detect centimeter-wide power lines from up to 15 m away. This protects the aircraft not only from power lines, but from trees branches and other common obstacles as well. Active Obstacle Sensing and Avoidance works during the day or at night without being influenced by light or dust. Plus, the radar system’s Ingress Protection rating has increased to IP67, making the system even more resistant to dirt, debris, and water.

^{(MG-1P models sold in Thailand are not equipped with the MG-1P high-precision radar.)}

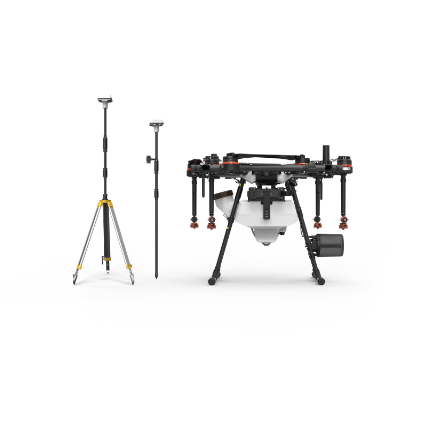

MG-1P RTK

Precise Positioning with Interference Resistance

The MG-1P RTK is powered by DJI’s high-precision D-RTK navigation and positioning technology which offers centimeter-level positioning that is essential for industrial applications. Dual-antenna direction finding technology gives strong resistance against electromagnetic interference, ensuring flight safety even when the aircraft is flying near high-voltage power lines or in other complicated environments.The MG-1P RTK works in tandem with a new base station and D-RTK^TM handheld mapper,^[3]which receives positioning data from the onboard RTK module to accurately measure fields and transmits results to the remote controller for precise planning.

MG APP 2.0

Operation Modes Practical and Powerful

Multi-Aircraft Control Mode

New operation modes have been added to the MG app v2.0. Multi-Aircraft Control mode is easy and intuitive, fully empowering users to control multiple aircraft with a single remote controller. Another new operation mode is Banked Turning, which uses optimized flight routes and increases working efficiency by up to 20%. Apart from the new modes, A-B Route Operation Mode, Manual Operation Mode, and Manual Plus Operation Mode are all still available to allow a multitude of control options.

Multiple Operation Modes

Banked Turning

New operation modes have been added to the MG app v2.0. Multi-Aircraft Control mode is easy and intuitive, fully empowering users to control multiple aircraft with a single remote controller. Another new operation mode is Banked Turning, which uses optimized flight routes and increases working efficiency by up to 20%. Apart from the new modes, A-B Route Operation Mode, Manual Operation Mode, and Manual Plus Operation Mode are all still available to allow a multitude of control options.

Key Features

• High-Precision Radar: Four radars ensure real-time obstacle avoidance and terrain following for maximum safety.
• Multi-Aircraft Control Mode: Operate up to five drones simultaneously to increase efficiency.
• RTK-Enabled Navigation: Offers centimeter-level positioning accuracy, essential for industrial applications.
• Durable Build: IP67-rated radar system and IP54-rated battery protection for reliable operation in harsh conditions.
• Optimized Spray System: Four nozzles and customizable droplet sizes ensure consistent spraying across varied terrains.

Detailed Specifications

Specifications	Details
Aircraft Frame	Diagonal Wheelbase: 1500mm
	Dimensions (Arms Unfolded): 1460×1460×578mm
	Dimensions (Arms Folded): 780×780×578mm
Weight	9.7kg (without battery)
Max Takeoff Weight	24.8kg
Hovering Time	20min (@13.7kg takeoff weight)
	9min (@23.7kg takeoff weight)
Operating Temperature	0°C to 40°C
RTK Positioning Accuracy	Horizontal: 1cm + 1ppm
	Vertical: 2cm + 1ppm

Spray System	Details
Liquid Tank Capacity	10L
Nozzles	4
Droplet Size	130-250μm (subject to environment)
Max Battery Size	151×195×70mm

Radar System	Details
Radar Range	1.5-30m
Operating Temperature	-10°C to 40°C
Ingress Protection	IP67

Remote Controller	Details
Operating Frequency	2.4GHz / 5.8GHz
Max Transmission Range	3km (SRRC/CE/MIC/KCC), 5km (FCC)
Battery	External: 4920mAh; Built-in: 320mAh
Operating Temperature	-10°C to 40°C

In Package

• 1 x AGRAS MG-1P Aircraft
• 1 x MG-12000P Intelligent Battery
• 1 x Remote Controller (GL300N)
• 1 x Radar Module (RD2412R)
• 1 x MG Intelligent Battery Charger
• 1 x Liquid Tank (10L)
• 4 x Nozzles
• 1 x Propeller Set (CW & CCW)
• 1 x Assembly Tools
• User Manual
