The AGRAS T20P is light and nimble while packing powerful performance. It can carry a spraying payload of up to 20 kg[1] and a spreading payload of up to 35 L (25 kg)[1], and is equipped with a Dual Atomized Spraying System, DJI Terra, Active Phased Array Radar and Binocular Vision. It supports multiple operations from surveying, mapping, to spraying and spreading, offering superior performance and versatility at best value.

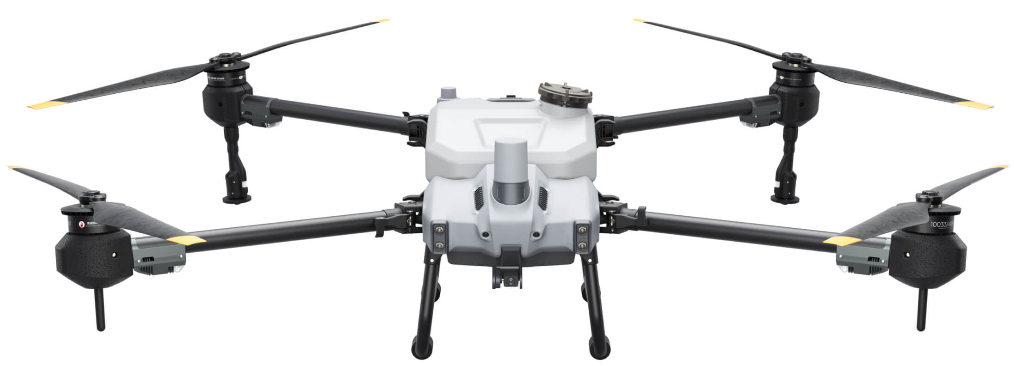

The AGRAS T20P features a four-rotor and new tilted truss design that reduces its size by 77% for easy handling by one person. Perfect size for optimal function
per hour12hectare[2]
per hour2.6hectare[3]
per hour1tonnes of fertilizer[4]
25 kg spreading payload |
Active Phased Array Radar + |
Dual Automized |
Supports flight spraying/spreading and RC mapping |
![IPX6K protection[5]](https://dji-official-fe.djicdn.com/dps/947dfcdbdf590314889d2f3f48f08025.svg){kind=icon}
IPX6K protection[5] |
Generator |
Dual atomization for even spraying 12 L/min
Magnetic Drive Impeller Pump
The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning
Dual Atomized Centrifugal Sprinkler
The dual atomized spray disc ensures even droplets and more efficient pesticide usage.
The proprietary centrifugal valve prevents leakage, avoids over-fertilization, pollution, and reduces pesticide use while protecting the environment.
Enhanced spreading efficiency for superior performance
1 tonne of fertilizer per hour
Real-time weighing
Fast disassembly and cleaning
Omnidirectional Obstacle SensingThe Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m [7]allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles. DJI Agras aircraft tackles complex terrain with ease, even in hilly orchards.
The AGRAS T20P combines mapping（with D-RTK 2 mobile station）, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote control without fully internet connection. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.
The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes[8]. The payload for each flight is maximized with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.
The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as waterproofing, dust prevention, corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.
The 6000W Multifunctional Inverter Generator contains a detachable charging module and is compatible with utility power input (Advanced Pro Combo supports) as well as various charging scenarios. Fast charging of two batteries in 9 minutes, with the 13000mAh Intelligent Flight Battery [9].
20L tank charges 60 batteries [9]
1500W AC output
9-min ultra-fast charging
220V/380V utility power input
(Advanced Pro Combo supports)
Battery Station provides 7,200 watts of charging power and can charge a battery in 10 minutes. It also has a backup power system and supports dual-channel alternated charging with power adaptation and safer operation.
Capacity up to 13,000 mAh
11.5C while discharging, 6C while charging
warranty coverage of 1,500 charging cycles[10]
With the DJI Agricultural Cloud Platform and P4 Multispectra, PHANTOM 4 RTK or AGRAS aircraft, users can carry out field patrols, land leveling monitoring, seedling identification, long-term growth analysis, and variable spraying/spreading operations using prescription maps. Paired with the DJI P4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision, based on the full-cycle growth of the crops and the farmland’s prescription map. The feature is useful in for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.
| Feature | Details |
|---|---|
| Spraying Payload | 20kg |
| Spreading Payload | 25kg (35L capacity) |
| Coverage Efficiency | 12 hectares/hour (farmland), 2.6 hectares/hour (orchard) |
| Obstacle Sensing | Active Phased Array Radar + Binocular Vision |
| Obstacle Detection Range | Up to 50m |
| Battery Capacity | 13,000mAh Intelligent Flight Battery |
| Battery Charge Time | 9 minutes |
| Generator Compatibility | D6000i Multifunctional Inverter Generator |
| Drone Dimensions | 77% smaller folded structure for easy handling |
| Ingress Protection Rating | IPX6K |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
