DJI Agras T30 30L Spraying Drone | Agriculture | Precision Farming
DESCRIPTION
The DJI Agras T30 is the ultimate agricultural drone, designed for large-scale spraying and spreading operations. Equipped with a 30L spray tank, it delivers precision coverage for up to 40 acres per hour. Its branch-targeting technology ensures effective penetration for orchards, while its spherical radar system detects obstacles and terrain, adapting to all environments. Built for durability, the T30 boasts an IP67-rated structure and foldable design for ease of transportation. With advanced features like dual FPV cameras, smart route planning, and rapid battery charging, the Agras T30 sets the standard for efficiency and safety in digital agriculture.

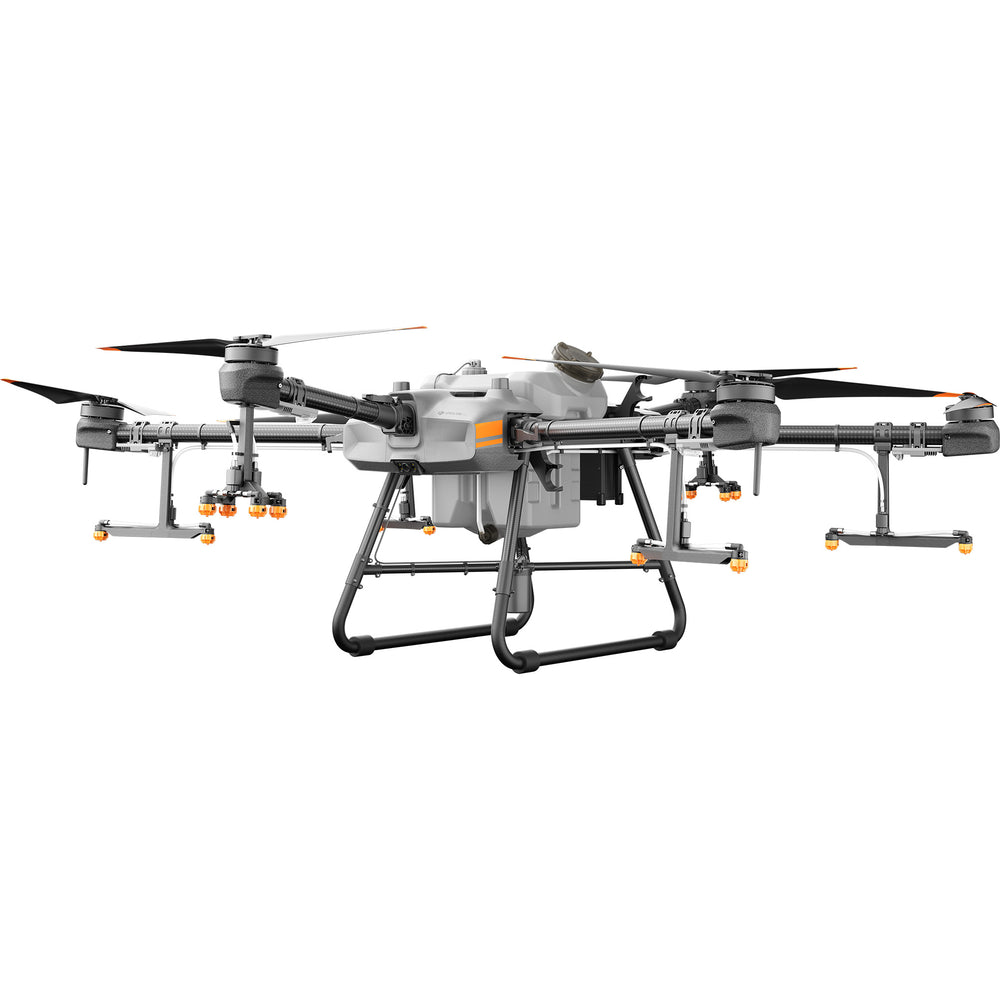

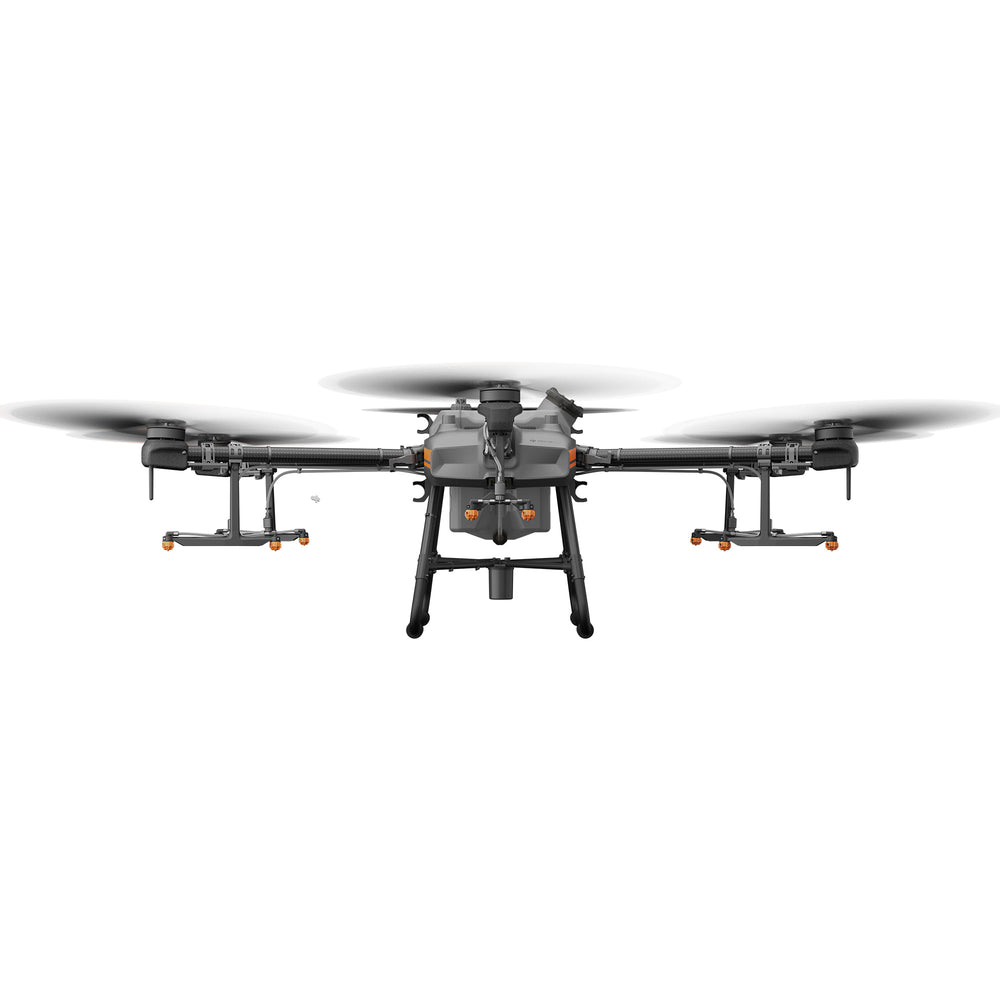

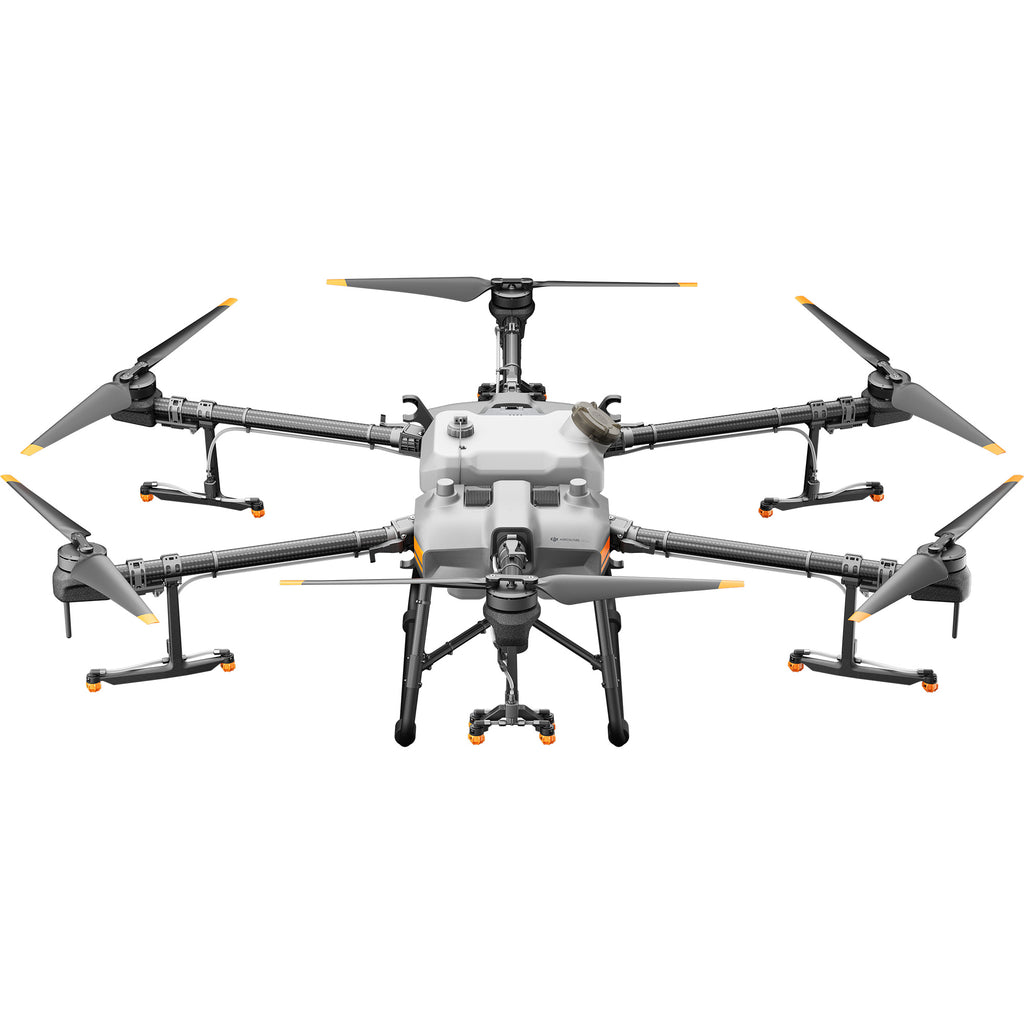

DJI Agras T30
A New Flagship for Digital Agriculture
With a 30 liter spraying tank, the DJI Agras T30 takes aerial spraying efficiency to new heights. A revolutionary transforming body enables more effective spraying, especially for fruit trees. Using DJI digital agriculture solutions, the T30 helps reduce fertilizer use and increase yield with effective, data-driven best practices.

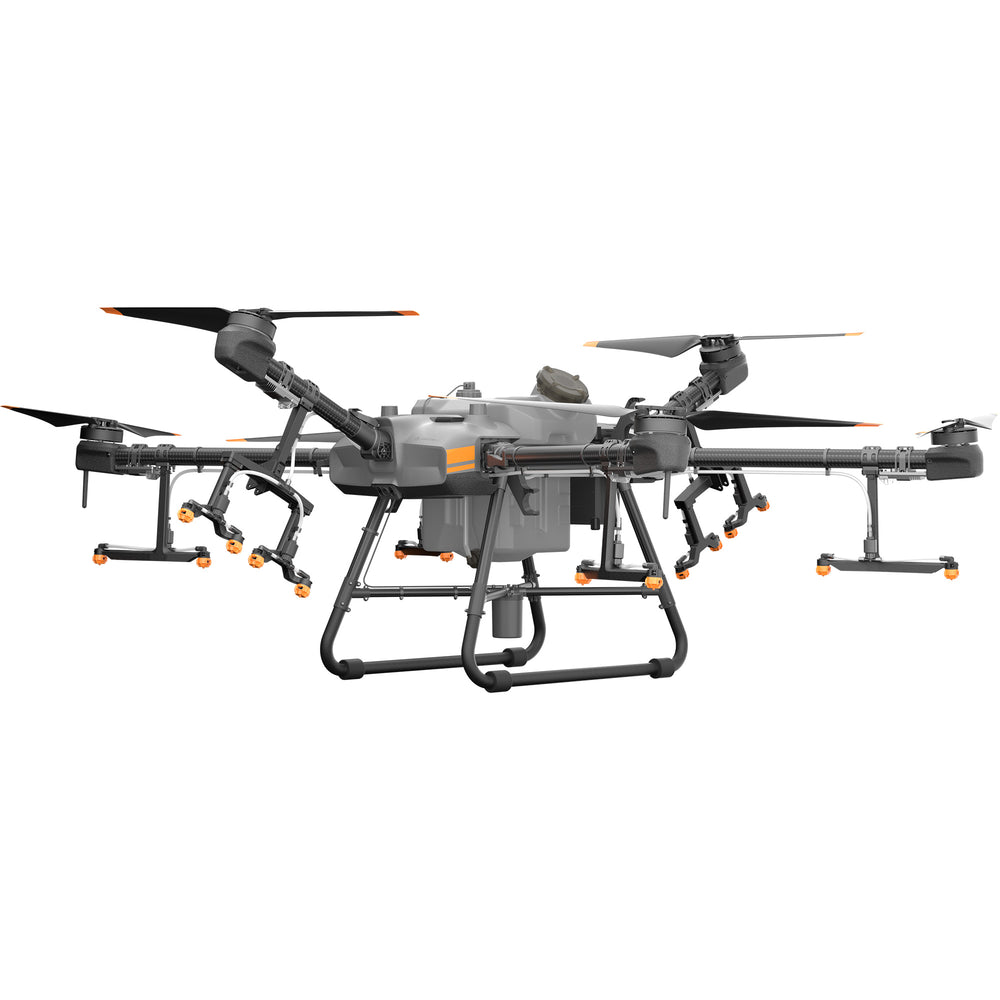

Branch-Targeting Technology
for Thorough Penetration
16 spray nozzles provide extensive coverage
with even distribution, strong penetration, and exceptional drift prevention.
A 16-nozzle layout further improves droplet penetration.
Eight sets of solenoid valves enable independent variable frequency control and spraying in turn. The horizontally opposed six-cylinder double plunger pump design provides strong spraying power and a high flow rate of up to 8 liters per minute.
40 Acres per Hour
Eliminate Blind Spots with a Spherical Radar System
The spherical radar system perceives obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. Automatic obstacle avoidance and adaptive flight functions help ensure safety during operation.
Dual FPV Cameras for Improved Awareness
Equipped with dual FPV cameras, the Agras T30 provides clear front and rear views and lets you check flight status without needing to turn the aircraft mid-flight. And a bright searchlight doubles the aircraft's night vision capabilities, creating more nighttime operation possibilities.
Designed for Long Term Service
The Agras T30 control module has a fully enclosed structure for added durability. All critical components have three layers of protection and are IP67 rated. Ideal for long term use of pesticides and fertilizers, and to resist dust and corrosion.

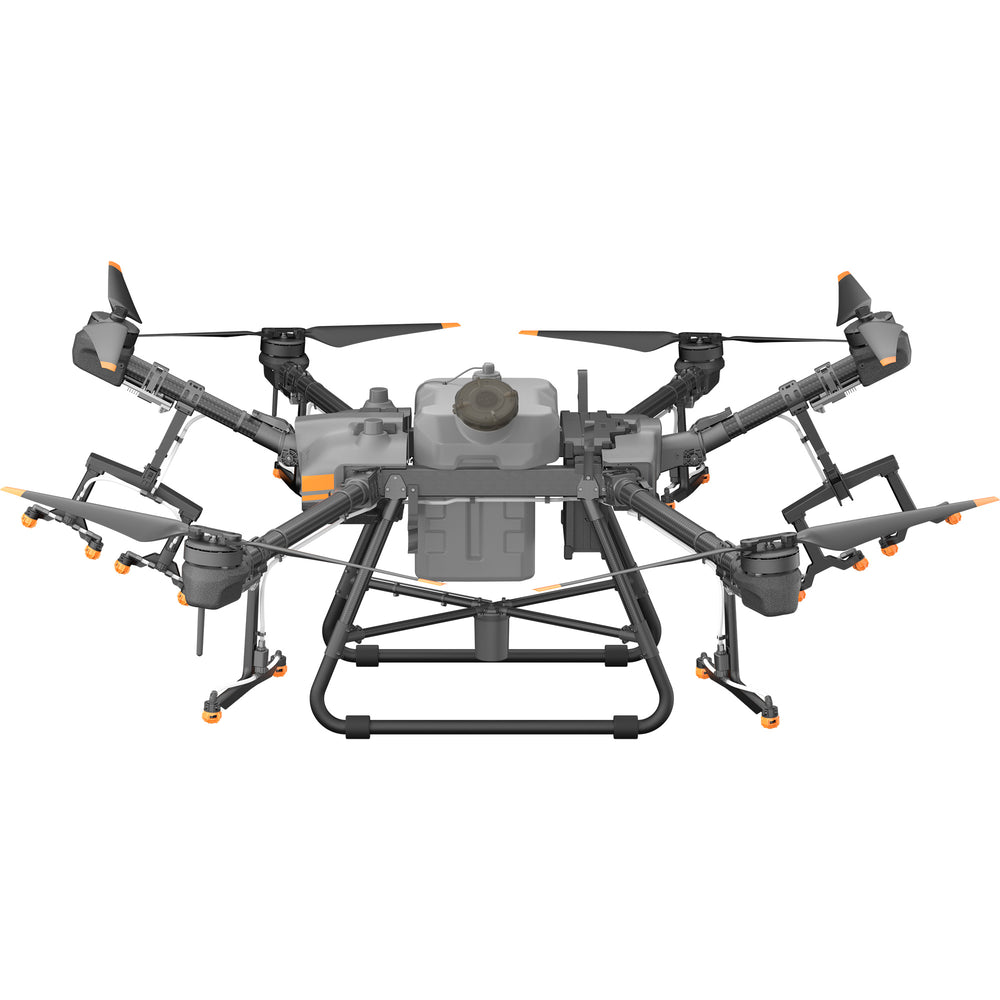

Flexible folding for convenient transportation
The Agras T30 can be folded by 80%, making it easier to transport. This folding mechanism uses quick-snap locking, redundancies, and an in-app alert to help ensure safe operation.
Autonomous Operation
with Optimal Route Planning
The new intelligent route mode independently plans the best route for each operation. A gauge indicates the remaining liquid payload amount and estimated time until refill in real-time, letting operators strike the perfect balance between payload and battery life. The aircraft also supports automatic edge sweeping for extensive spray coverage and easier aerial operation.
Smart Tank Refill Alert
Automatic Edge Sweeping Mode
Ultrabright Screen
Ultimate Control
An updated remote controller supports stable image transmission from up to 5 km away, 67% more than the previous generation. [3] A bright 5.5-inch screen delivers clear visuals , even in harsh lighting conditions. For increased productivity, one remote controller can operate multiple drones at once. The standard RTK high-precision positioning module implements centimeter-level operation planning. Additional enhancements include stronger signaling, anti-interference, and operational stability. The new DJI Agriculture app provides a smooth user experience and more intuitive operation.
Two Batteries + Charger for Continuous Operation
1,000 cycles for 4,942 acres
With fewer supporting components needed, the Agras T30 is easier to transport. A newly designed intelligent battery is covered by warranty for 1,000 charges and 4,942 acres of flight; this ultra-long service life significantly reduces operating costs. The charging station and smart charging hub can fully charge a battery in 10 minutes, allowing for continuous operation with just two batteries and one charger. The standard safety box helps ensure battery safety and easy equipment storage.

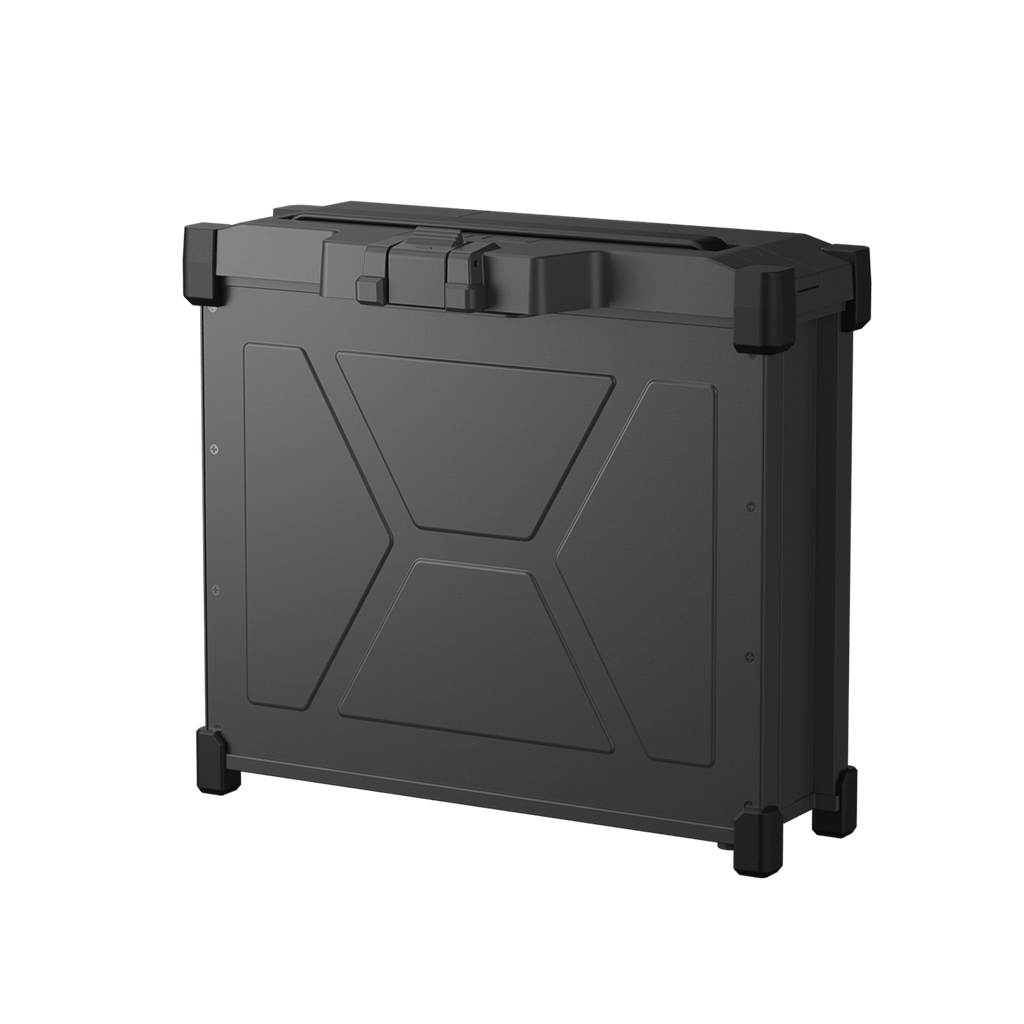

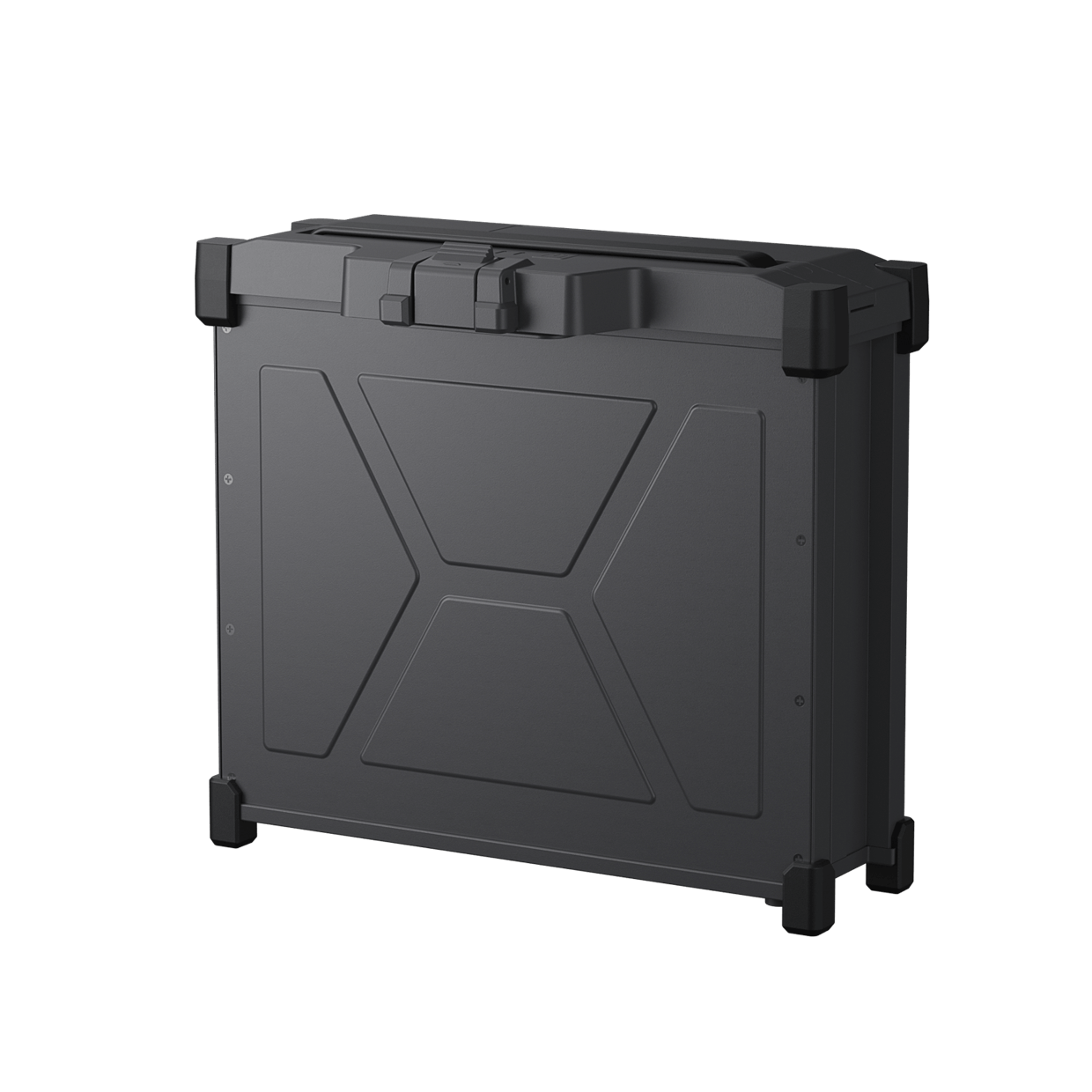

DJI Agras T30 Intelligent Flight Battery
The 29,000mAh Intelligent Flight Battery has a product guarantee of 1,000 cycles. [4]
It supports instant charging without the need for cooldown,
circuit board-level potting protection, and resistance from water and corrosion.

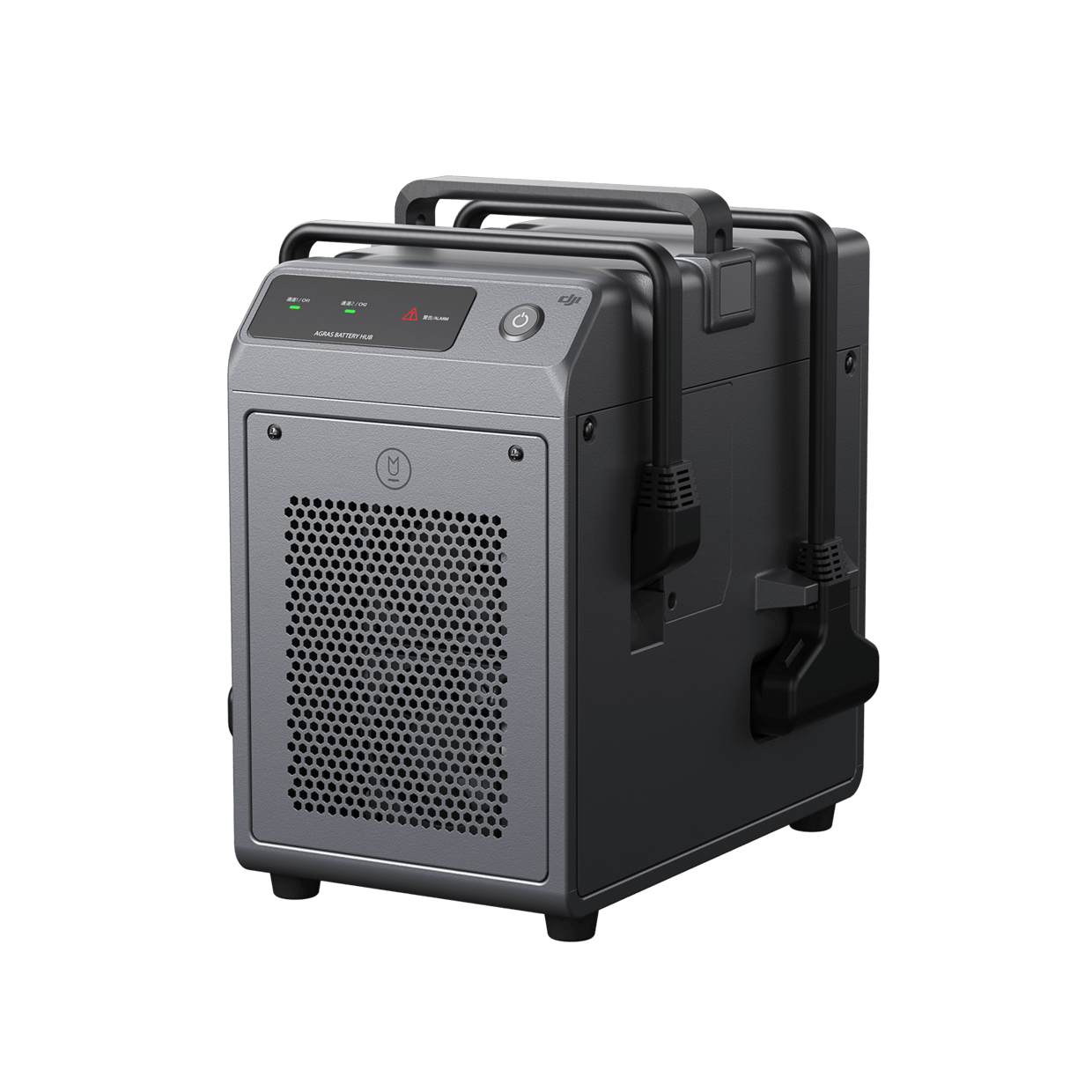

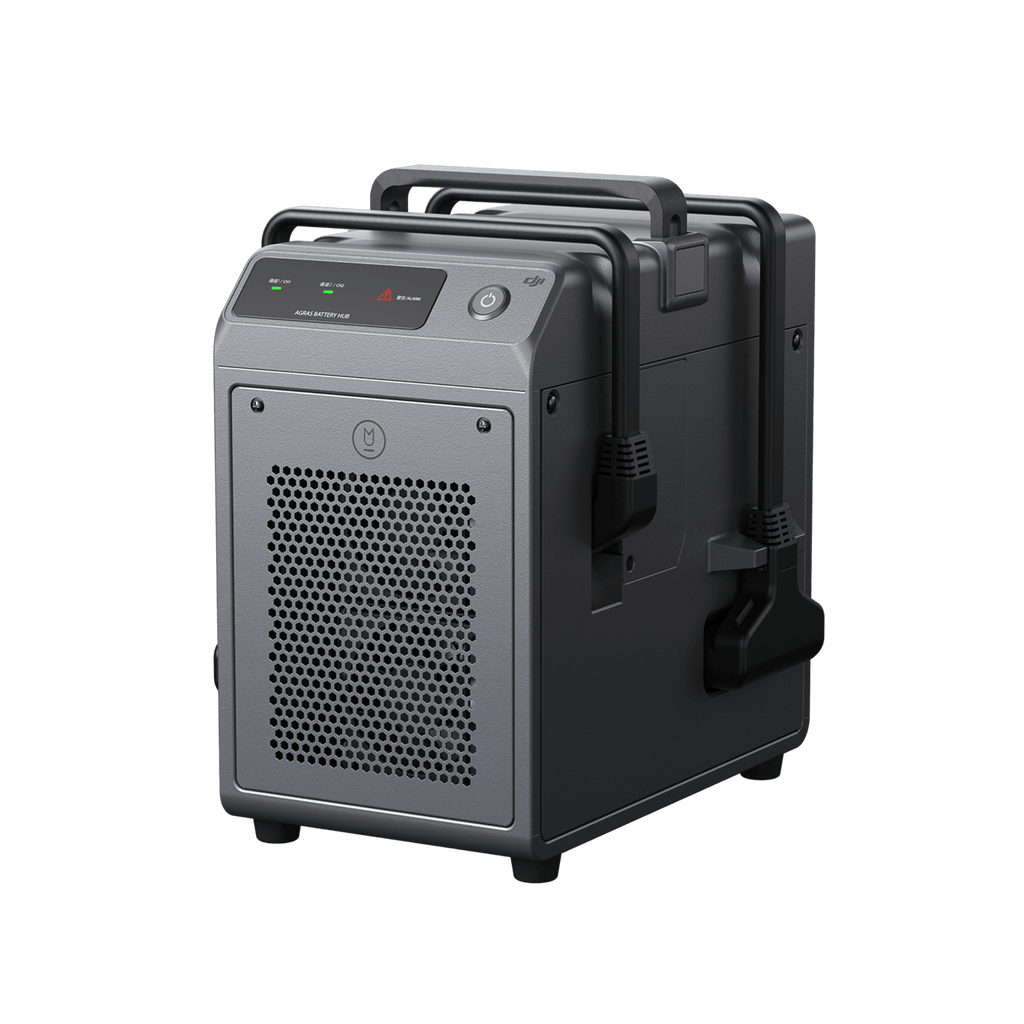

DJI Agras T30 Intelligent Battery Station
The T30 Battery Station provides 7,200 watts of charging power
and can charge a battery in 10 minutes.
It also has a backup power system and supports dual-channel alternated charging with
power adaptation and safer operation.
T30 Spreading System 3.0
Large-capacity, Washable, and Corrosion-Resistant
This updated spreading system has a capacity of up to 40L [5] a spreading width of up to 7 meters, [6] and an hourly spreading capacity of 1 ton. [7] This system also supports real-time weight monitoring and has an anti-rotation sensor, allowing more accurate refill alerts. The T30's overall water-resistance rating of IP67 rating makes it washable and corrosion-resistant ideal for spraying of fertilizers, seeds, and feed. When used with digital agriculture solutions, the Agras T30 implements variable spreading, reducing fertilizer use while increasing yield.
Cloud-Based 3D Farming: Digital Agriculture is Here
With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.
Key Features
- 30L Tank Capacity: Handles extensive spraying tasks with efficiency, covering up to 40 acres per hour.
- Branch-Targeting Technology: Ensures precise spray coverage and optimal droplet penetration.
- Spherical Radar System: Provides 360-degree obstacle detection and terrain adaptation.
- Robust and Portable Design: IP67-rated and foldable by 80% for long-term durability and easy transport.
- Intelligent Flight System: Features automated route planning, real-time monitoring, and smart alerts for enhanced operational precision.
Detailed Specifications
| Specifications | Details |
|---|---|
| Spray Tank Capacity | 30L |
| Hourly Work Efficiency | 40 acres |
| Max Spray Flow Rate | 8L/min (with optional nozzle) |
| Droplet Size | 130-250 μm (standard nozzle) |
| Battery Capacity | 29,000mAh, 51.8V |
| Max Flight Time | 20.5 min (36.5 kg takeoff weight) |
| Radar System | Spherical omnidirectional, IP67-rated |
| Operating Temperature | 0°C to 45°C |
| Remote Controller Range | Up to 7 km (FCC-compliant) |
| Max Flight Altitude | 4,500m |
| Chassis Dimensions | Details |
|---|---|
| Unfolded (with arms/blades) | 2,858 × 2,685 × 790 mm |
| Folded (for transport) | 1,170 × 670 × 857 mm |
| Power System | Details |
|---|---|
| Motor Power | 3,600W/rotor |
| Propeller Dimensions | 38×20 inch |
| Spraying System | Details |
|---|---|
| Nozzles | 16 (standard and optional available) |
| Maximum Spray Width | 4-9m (depending on crop height) |
| Water Pump Flow Rate | 4 L/min × 1 |
| Remote Controller | Details |
|---|---|
| Screen | 5.5-inch, 1920×1080, 1000 cd/m² brightness |
| Battery Life | 2 hours (built-in) / 4 hours (external) |
In Package
Standard Kit:
- 1x DJI T30 Base Kit
- 2x T30 Intelligent Batteries
- 1x T30 Smart Charging Station
- 1x T30 Spreading Accessory (v3.0)
- 1x Assembly & Maintenance Tools
- 1x Operator’s e-manual
Productivity Kit:
- 4x T30 Intelligent Batteries
- 1x T30 Smart Charging Station
- 1x T30 Spreading Accessory (v3.0)
- 1x Virtual Training Session
- 1x Assembly & Maintenance Tools
- 1x Operator’s e-manual
Productivity MAX Kit:
- 4x T30 Intelligent Batteries
- 1x T30 Smart Charging Station
- 1x T30 Spreading Accessory (v3.0)
- 1x T30 Spare & Wear Parts Kit
- 1x Drone Protection Plan (covers up to $35k hardware for 24 months, $750 deductible)
- 1x 2-Day PRO Flight Training (in-person Florida)
- 1x Assembly & Maintenance Tools
- 1x Operator’s e-manual
