DJI M30 Dock Version-Automated Drone Hangars

Product Description

DJI | M30 Dock Version | Automated Drone Hangars | Industrial Drone Solution

DESCRIPTION

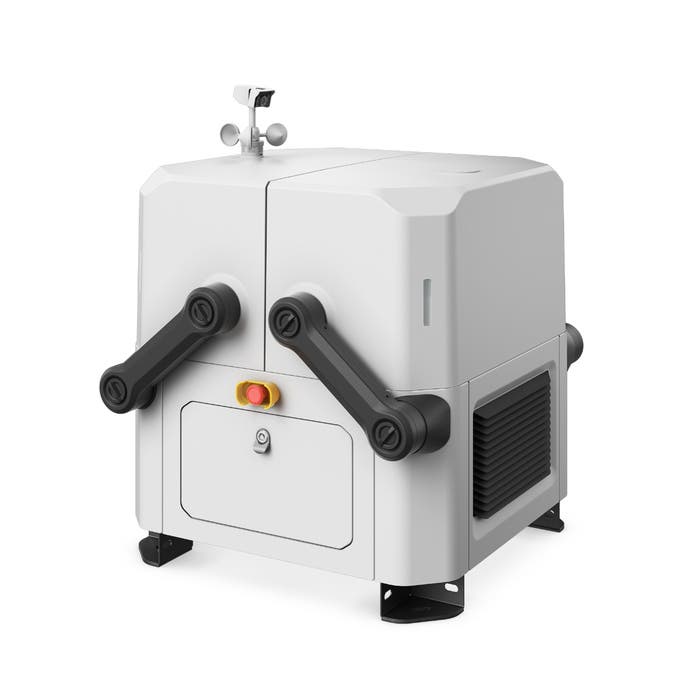

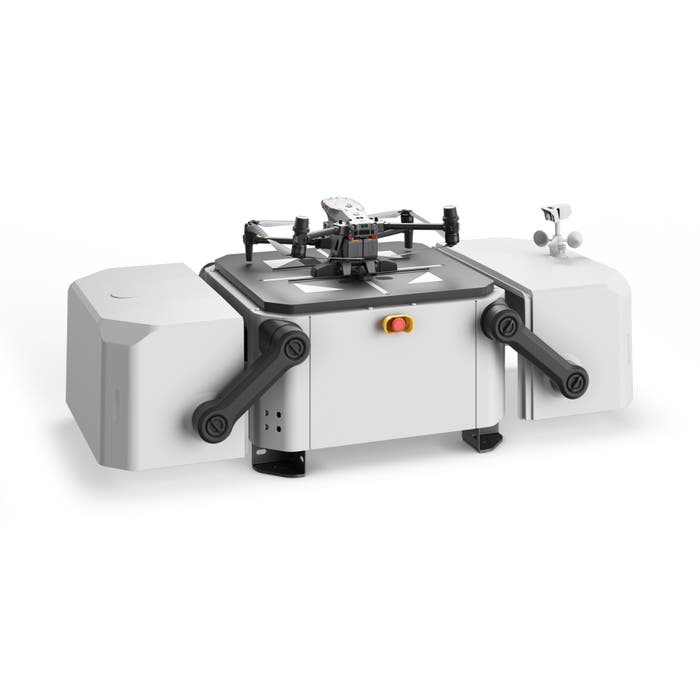

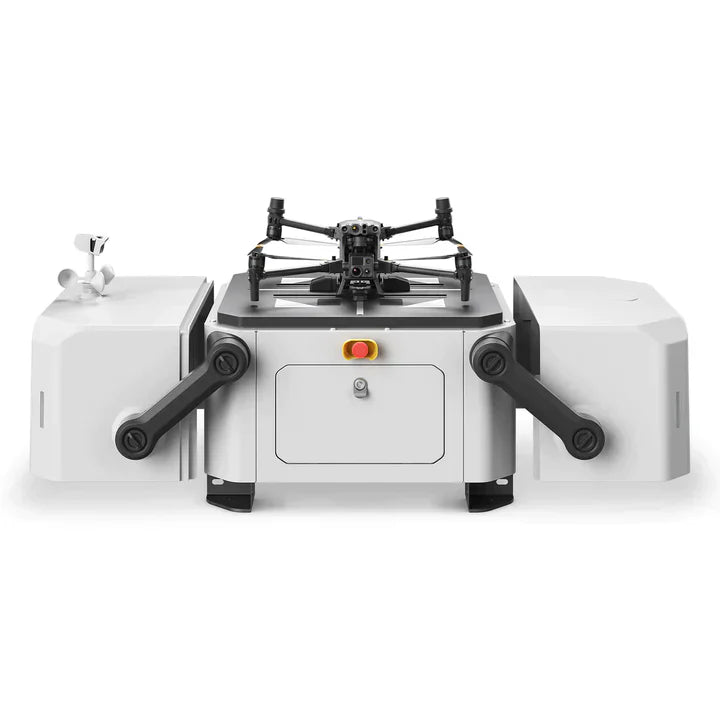

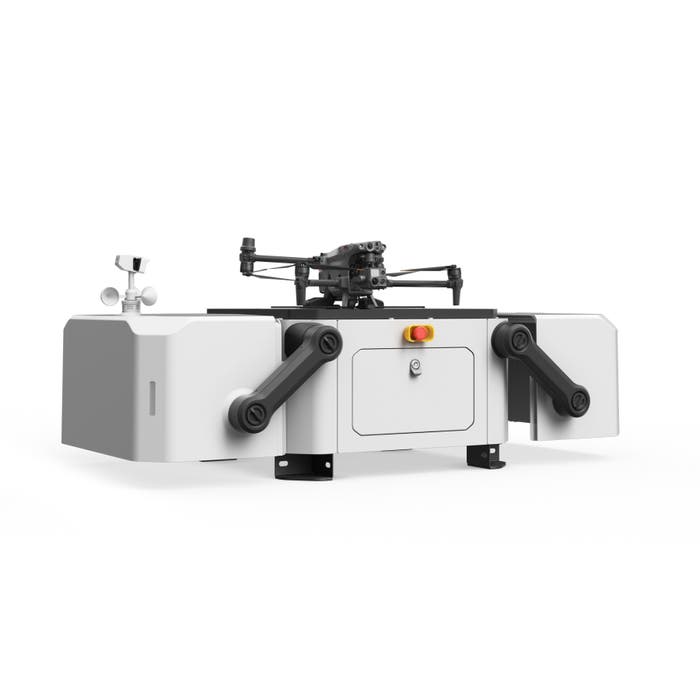

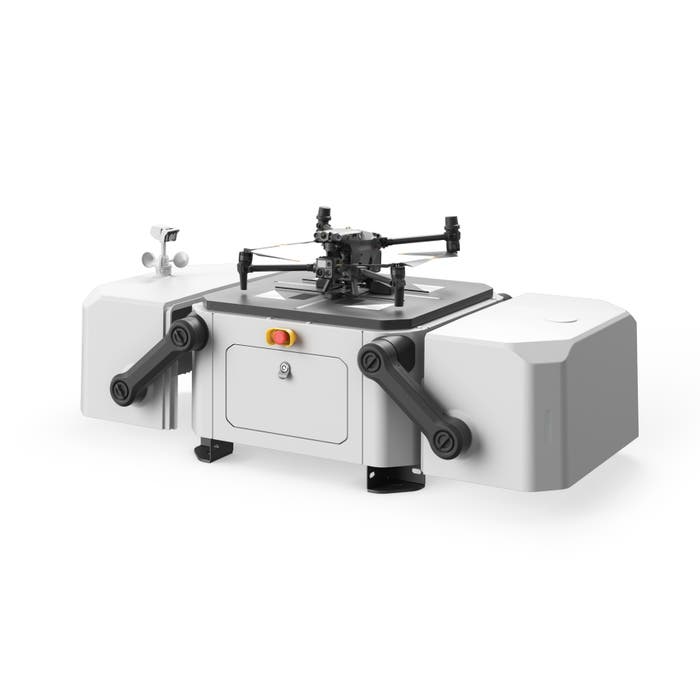

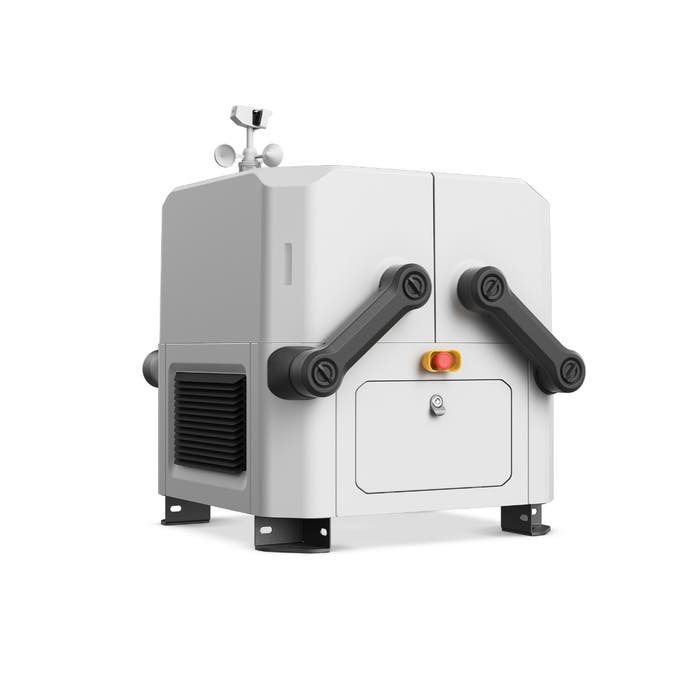

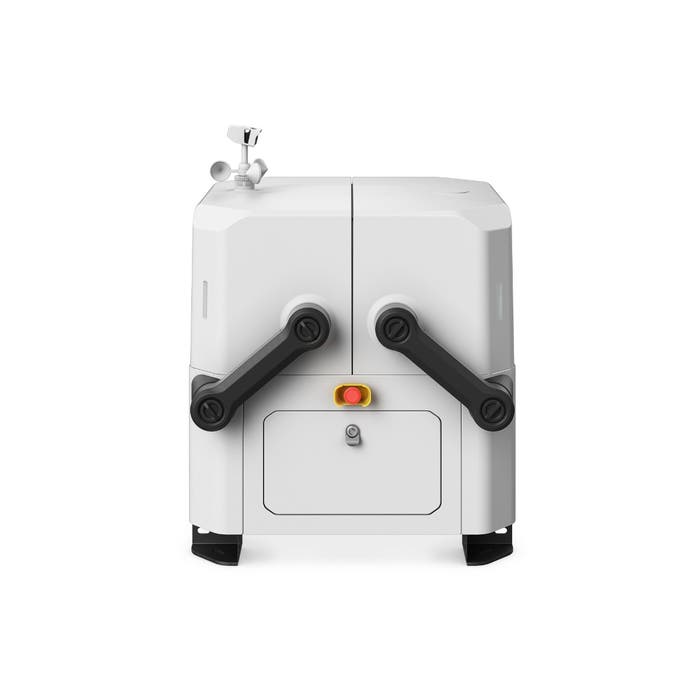

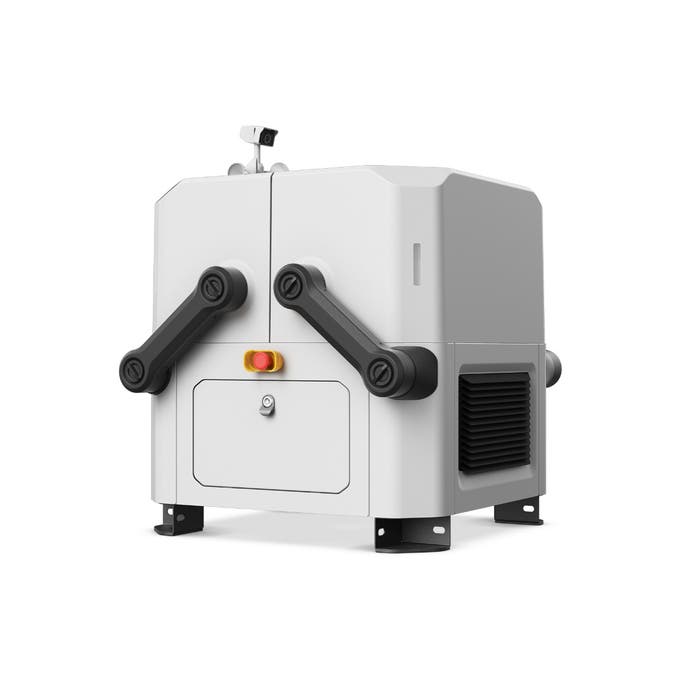

The DJI M30 Dock Version Automated Drone Hangar revolutionizes drone operations with fully automated and remote-controlled functionality. Designed for the DJI Matrice 30 Series, the dock integrates seamlessly with DJI FlightHub 2 to perform scheduled missions, manage data, and operate autonomously 24/7. Its TEC air cooling system facilitates fast battery charging, ensuring minimal downtime and increased operational efficiency.

Engineered for challenging environments, the dock features IP55 weather resistance and robust lightning protection, making it suitable for diverse industries like agriculture, inspection, and emergency response. Its lightweight and compact design allow for quick setup, requiring only power, internet access, and basic ground fixation.

The dock also offers wide-area coverage with the Matrice 30 Series, boasting up to 40 minutes of flight time and a maximum mission radius of 7 km. With advanced sensors, including wind speed and rainfall detection, and integration with DJI Pilot 2, the DJI M30 Dock Version ensures safe and reliable operations in any condition.

Key Features

• Autonomous Drone Operations: Fully automated landing, charging, and takeoff.
• Durable All-Weather Design: Built to withstand extreme temperatures, dust, and water exposure.
• Advanced Sensors: Monitors environmental conditions with wind speed, rainfall, temperature, and humidity sensors.
• Integrated Security Camera: Provides a 1080p live feed with a 180° field of view.
• Easy Setup: Lightweight and compact for hassle-free deployment.

Detailed Specification

General Specifications

Feature	Details
Product Name	DJI Dock
Weight	90 kg
Dimensions (Cover Open)	1,675 × 895 × 530 mm (L × W × H)
Dimensions (Cover Closed)	805 × 895 × 840 mm (L × W × H)
Input Voltage	100-240 VAC, 47-63 Hz
Max Input Power	1,500 W
Operating Temperature	-35°C to 50°C (-31°F to 122°F)
Ingress Protection Rating	IP55
Max Operating Radius	7,000 m
Max Operating Altitude	4,000 m

Charging Performance

Feature	Details
Output Voltage	18 to 26.1 V
Charging Time	25 minutes (10% to 90% battery)

Video Transmission

Feature	Details
Transmission System	O3 Enterprise
Operating Frequency	2.4000-2.4835 GHz, 5.725-5.850 GHz
Antenna Configuration	4 antennas, 2T4R

Backup Battery

Feature	Details
Battery Type	Lead-acid
Capacity	12 Ah
Battery Life	> 5 hours

Air Conditioning System

Feature	Details
Type	TEC Air Conditioning
Operating Voltage	48 VDC

Sensors

Type	Supported
Wind Speed Sensor	Yes
Rainfall Sensor	Yes
Temperature Sensor	Yes
Humidity Sensor	Yes

In Package

• 1x DJI Dock
• 1x Integrated Security Camera
• 1x Backup Battery
• 1x TEC Air Conditioning System
• 1x Lightning Protection Unit
