DJI Matrice 350 RTK Drone Combo Professional Aerial Operations | With DJI Care Plus

Product Description

DJI Matrice 350 RTK Drone Combo Professional Aerial Operations | With DJI Care Plus

DESCRIPTION

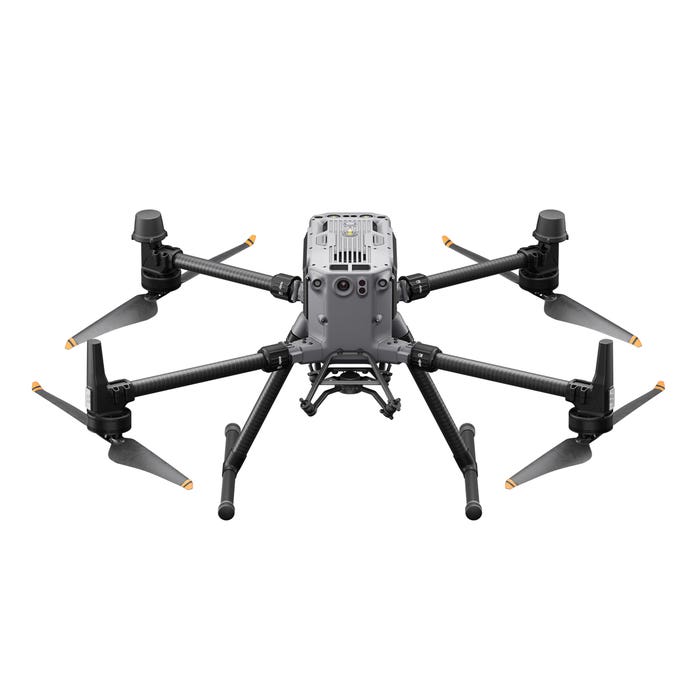

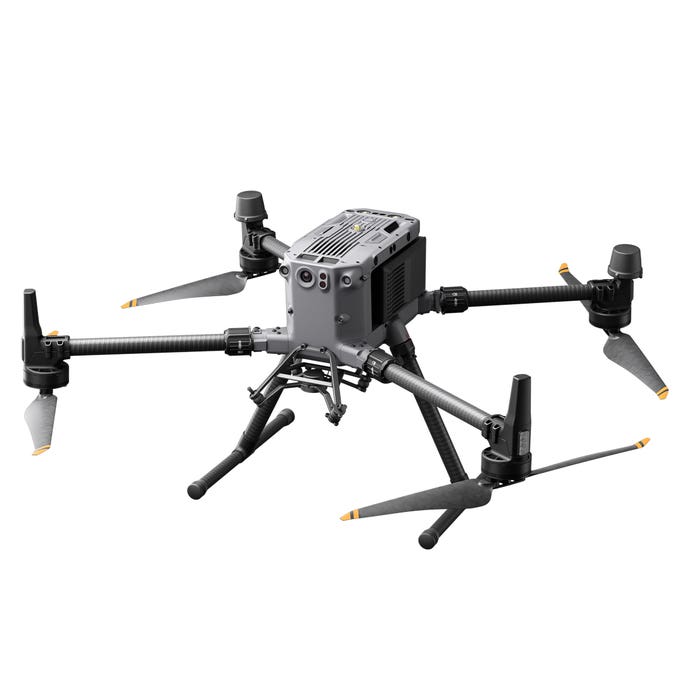

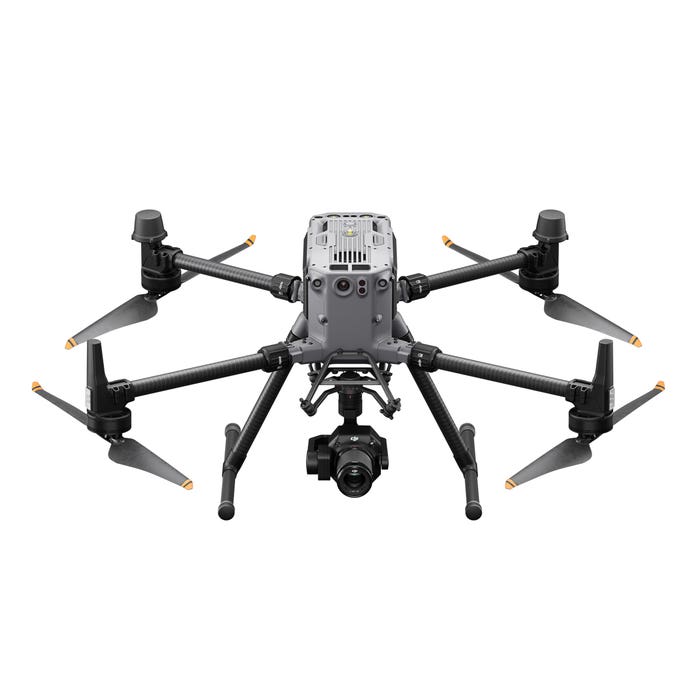

Forge ahead with fully powered DJI Matrice 350 RTK

The Matrice 350 RTK represents a highly advanced and enhanced flagship drone platform that establishes a new standard in the industry. With its cutting-edge technology, this next-generation drone platform showcases a redesigned video transmission system and an improved control interface, along with a highly efficient battery system and a wide range of safety features.

The drone also offers substantial payload capacity and expansion options, making it an ideal choice for any aerial operation. Its innovative capabilities empower users to achieve remarkable results in their endeavors.



55-min max flight timeDJI O3 Enterprise Transmission (up to 20 km)400 battery cycles6-directional sensing and positioningNight vision FPV cameraMulti-payload support up to 2.7 kgHigh-precision mappingAir-to-ground coordinationAutomated precision inspectionDJI RC PlusWith DJI Care Plus



Effortlessly demonstrating remarkable flight capability

Engineered with durability in mind, the Matrice 350 RTK boasts powerful propulsion and an upgraded protection rating. It can carry up to 2.7 kg of payload, fly for a maximum of 55 minutes, and reach as high an altitude of 7,000 m.

With a drone built for exceptional flight performance, you can effortlessly overcome a diverse array of obstacles and tasks with ease.

O3 Enterprise Transmission

The Matrice 350 RTK incorporates the DJI O3 Enterprise Transmission system, which facilitates triple-channel 1080p HD live feeds and enables a maximum transmission distance of 20 km.

Both the aircraft and the remote controller are equipped with a four-antenna transceiver system that intelligently selects the two most optimal antennas for signal transmission, while simultaneously receiving signals through all four antennas.

This intelligent antenna selection enhances anti-interference capabilities and optimizes transmission stability, leading to improved overall performance.

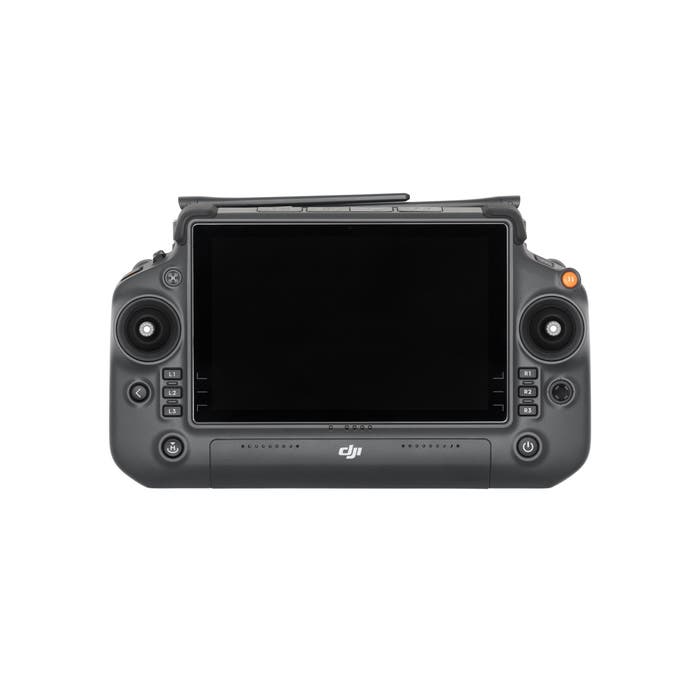

Intuitive and flexible control experience

Featuring a high-brightness 7-inch screen, the DJI RC Plus offers an upgraded control experience. It supports Dual Operator Mode, allowing for collaborative operation, and is accompanied by a standard WB37 external battery with a remarkable operational duration of up to 6 hours.

Rugged and Weather-Resistant Design

With an IP54 rating, the DJI RC Plus guarantees dependable operation in adverse weather conditions. It is both dustproof and waterproof, ensuring reliability even in challenging environments. Its wide operating temperature range of -20° to 50° C (-4° to 122° F) allows for continuous operation, even in extreme hot or cold climates.

Intuitive and Efficient Control

The remote controller is equipped with various buttons and dials strategically placed on the front, back, and top, enabling swift and efficient operation. Users have the flexibility to customize the button functions to align with their preferences, providing an intuitive and adaptable control experience.

DJI Pilot 2 for enhanced functionality

The DJI Pilot 2 application has undergone significant optimization to provide a clear and concise presentation of mission types and flight status. This streamlined interface ensures easy and seamless control of both the aircraft and payloads, enabling operators to carry out operations with enhanced efficiency.

Advanced power system

Featuring the latest TB65 dual-battery system, the Matrice 350 RTK offers a revolutionary capability of battery hot swapping.

This innovative design allows for continuous flights without the need to power off the drone. Moreover, the batteries are rechargeable for up to 400 cycles, resulting in significant cost savings per flight.

Enhanced flight safety measures

To enhance flight safety, the Matrice 350 RTK incorporates the following features and capabilities.

Arm lock indicator

This new arm lock detection feature mitigates the risk of unlocked arm sleeves, providing you with a sense of security and allowing you to focus on flying.

Night-vision FPV camera

With exceptional night vision capabilities, the FPV camera enables clear visibility of the surroundings and obstacles during nighttime flights. Combined with the PinPoint function, it offers improved navigation for safer flights, instilling greater confidence during nighttime operations.

6-directional sensing and positioning

The drone is equipped with a six-directional binocular vision system and an infrared sensing system, granting it comprehensive awareness, positioning, and obstacle-sensing capabilities in all directions. This comprehensive system ensures a high level of protection during flights.

CMS radar

With the installation of the CSM Radar, the Matrice 350 RTK can detect subtle obstacles both above and within a 360° horizontal range, enabling timely avoidance maneuvers. The effective detection range of up to 30 meters significantly enhances flight safety.

Multi-layered redundancy design

To maximize flight safety, both the aircraft system and the sensor system of the Matrice 350 RTK feature redundancy designs, ensuring robustness and reliability even in challenging operational environments, thereby instilling greater confidence in users.

Powerful payloads

The DJI Matrice 350 RTK offers versatile payload options and supports single downward gimbal, dual downward gimbals, and a single upward gimbal. It also incorporates an E-Port open interface, providing expandability for integrating additional devices.

With an impressive maximum payload capacity of 2.7 kg, the drone has the capacity to carry up to 3 payloads concurrently, effectively addressing the requirements of various operational scenarios such as public safety, inspection, and mapping.

The best DJI payloads you can mount to the Matrice 350 RTK are:

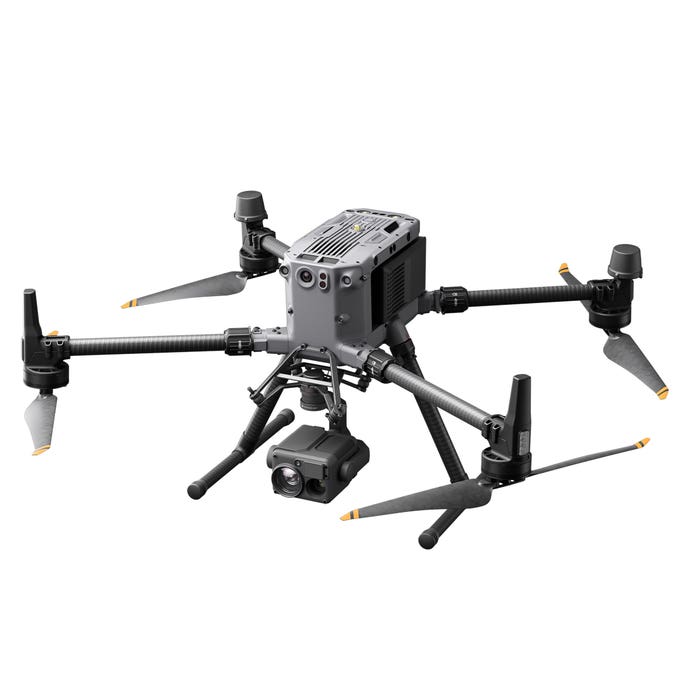

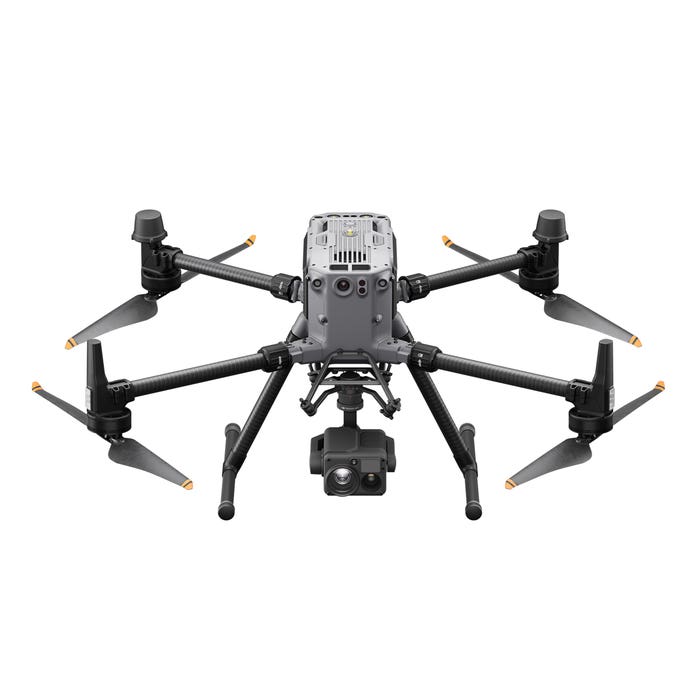

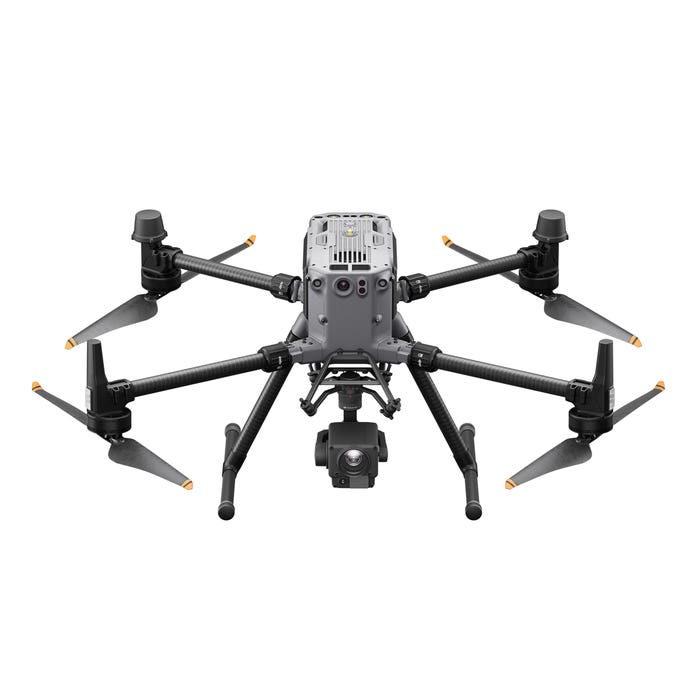

• DJI Zenmuse H20 Series

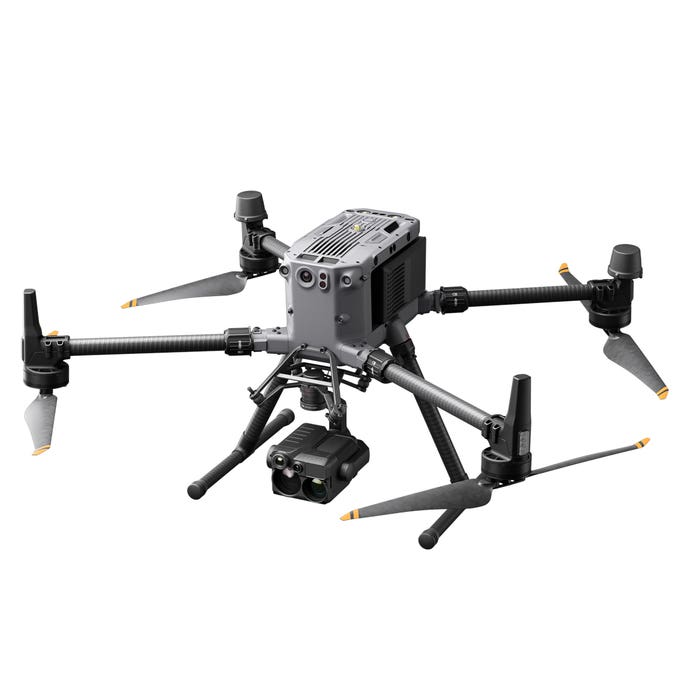

• DJI Zenmuse H20N
• DJI Zenmuse P1

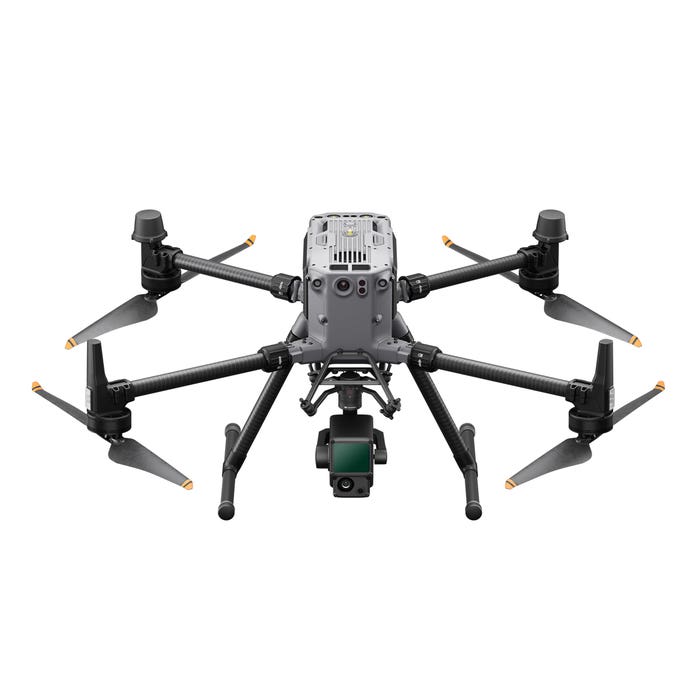

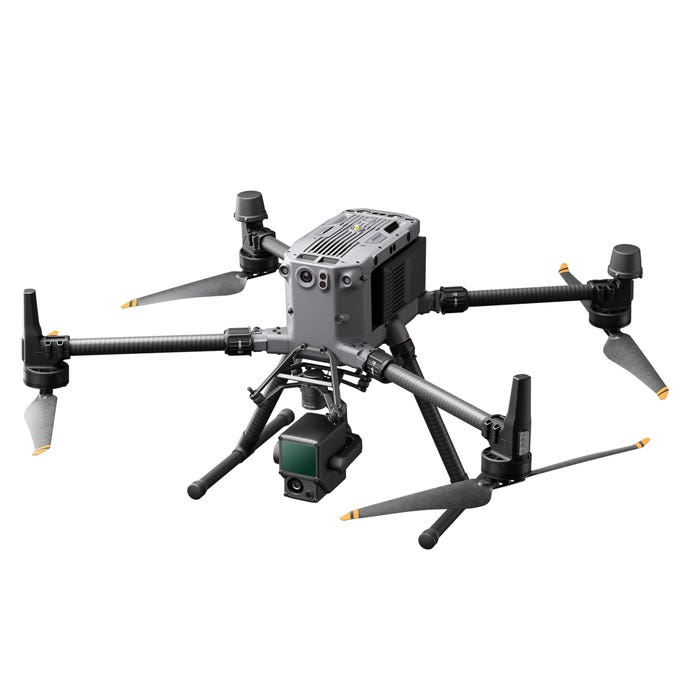

• DJI Zenmuse L1

Smart and efficient operations

With intelligent functions and capabilities, the DJI Matrice 350 RTK allows you to efficiently carry out your missions.

High-precision mapping

The Matrice 350 RTK offers support for various mission types, including Waypoint, Mapping, Oblique, and Linear Flight missions. It provides options such as Terrain Follow and Smart Oblique for efficient data collection.

When used in conjunction with DJI Terra, the drone facilitates the rapid generation of high-definition 2D and 3D digital results, enabling precise and efficient mapping operations.

Air-to-ground coordination

Equipped with features like the highly precise PinPoint function and cloud-based real-time mapping, the Matrice 350 RTK seamlessly integrates aerial, ground, and cloud elements. Once the aircraft completes image collection, DJI FlightHub 2 swiftly generates a model of the operation site and transmits command information to both the aircraft and ground operators.

The remote controller and FlightHub 2 support point, line, and surface drawing, enabling real-time uploading and collaboration with the drone to live stream the operation view. This breakthrough eliminates communication barriers and facilitates effective air-to-ground collaborative operations.

Automated precision inspection

Utilizing Live Mission Recording, the Matrice 350 RTK can generate and store flight route files for future use, enabling automated operations and eliminating the time and effort associated with repetitive inspections.

With the AI Spot-Check feature, the drone supports automatic framing and manual subject adjustments, improving the accuracy of repeated shots and enhancing the quality of inspection operations.

SPECIFICATION

Aircraft

• Dimensions (unfolded, without propellers): 810×670×430 mm (L×W×H)

• Dimensions (folded, with propellers): 430×420×430 mm (L×W×H)

• Diagonal Wheelbase: 895 mm

• Weight (with single downward gimbal)
  • Without batteries:
    Approx. 3.77 kg
  • With two TB65 batteries:
    Approx. 6.47 kg

• Single Gimbal Damper’s Max Payload: 960 g

• Max Takeoff Weight: 9.2 kg

• Operating Frequency
• 2.4000-2.4835 GHz
• 5.150-5.250 GHz (CE: 5.170-5.250 GHz)
• 5.725-5.850 GHz
• In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.

• Transmitter Power (EIRP)
• 2.4000-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
• 5.150-5.250 GHz (CE: 5.170-5.250 GHz):
  < 23 dBm (CE)
• 5.725-5.850 GHz:
  < 33 dBm (FCC/SRRC)
  < 14 dBm (CE)

• Hovering Accuracy (with moderate or no wind)
• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)
  ±0.1 m (with RTK positioning)
• Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)
  ±0.1 m (with RTK positioning)

• RTK Positioning Accuracy (RTK FIX)
• 1 cm + 1 ppm (horizontal)
• 1.5 cm + 1 ppm (vertical)

• Max Angular Velocity
• Pitch: 300°/s
• Yaw: 100°/s

• Max Pitch Angle
• 30°
  When in N mode and with the forward vision system enabled: 25°.

• Max Ascent Speed: 6 m/s

• Max Descent Speed (vertical): 5 m/s

• Max Tilted Descent Speed: 7 m/s

• Max Horizontal Speed: 23 m/s

• Max Flight Altitude
• 5000 m
  When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.
• 7000 m
  When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.

• Max Wind Speed Resistance: 12 m/s

• Max Flight Time
• 55 minutes
  Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.

• Supported DJI Gimbals: Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1

• Supported Gimbal Configurations
• Single downward gimbal
• Single upward gimbal
• Dual downward gimbals
• Single downward gimbal + single upward gimbal
• Dual downward gimbals + single upward gimbal

• Ingress Protection Rating
• IP55
  The IP rating is not permanently effective and may decrease due to product wear and tear.

• Global Navigation Satellite System: GPS + GLONASS + BeiDou + Galileo

• Operating Temperature: -20° to 50° C (-4° to 122° F)

Remote Controller

• Screen: 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits

• Weight
• Approx. 1.25 kg (without WB37 battery)
• Approx. 1.42 kg (with WB37 battery)

• Global Navigation Satellite System: GPS + Galileo + BeiDou

• Built-in Battery
• Type: Li-ion (6500 mAh@7.2 V)
• Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).

• Charging Time: 2 hours

• Chemical System: LiNiCoAlO2


• External Battery (WB37 Intelligent Battery)
• Capacity: 4920 mAh

• Voltage: 7.6 V

• Type: Li-ion

• Energy: 37.39 Wh

• Chemical System: LiCoO2


• Ingress Protection Rating: IP54

• Operating Time
• Built-in Battery: approx. 3.3 hours

• Built-in Battery + External Battery: approx. 6 hours


• Operating Temperature: -20° to 50° C (-4° to 122° F)

• Operating Frequency
• 2.4000-2.4835 GHz

• 5.725-5.850 GHz


• Transmitter Power (EIRP)
• 2.4000-2.4835 GHz:

• < 33 dBm (FCC)

• < 20 dBm (CE/SRRC/MIC)

• 5.725-5.850 GHz:

• < 33 dBm (FCC)

• < 14 dBm (CE)

• < 23 dBm (SRRC)


• Wi-Fi Protocol: Wi-Fi 6

• Wi-Fi Operating Frequency
• 2.4000-2.4835 GHz

• 5.150-5.250 GHz

• 5.725-5.850 GHz


• Bluetooth Protocol: Bluetooth 5.1

• Bluetooth Operating Frequency: 2.4000-2.4835 GHz

Video Transmission

• Video Transmission System: DJI O3 Enterprise Transmission

• Antenna: 4 video transmission antennas, 2T4R

• Max Transmission Distance (unobstructed, free of interference)
• 20 km (FCC)

• 8 km (CE/SRRC/MIC)


• Max Transmission Distance (with interference)
• Low Interference and Obstructed by Buildings: approx. 0-0.5 km

• Low Interference and Obstructed by Trees: approx. 0.5-3 km

• Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km

• Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km

• Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

• Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.


Vision System

• Obstacle Sensing Range

Forward/Backward/Left/Right: 0.7-40 m
Upward/Downward: 0.6-30 m

• FOV

Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
Left/Right/Upward: 75° (horizontal), 60° (vertical)

• Operating Environment: Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

• Obstacle Sensing Range: 0.1-8 m

• FOV: 30° (±15°)

• Operating Environment: Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

• Effective Illumination Distance: 5 m

• Illumination Type: 60 Hz, solid glow

FPV Camera

• Resolution: 1080p

• FOV: 142°

• Frame Rate: 30fps

Intelligent Flight Battery

• Model: TB65

• Capacity: 5880 mAh

• Voltage: 44.76 V

• Type: Li-ion

• Energy: 263.2 Wh

• Weight: Approx. 1.35 kg

• Operating Temperature: -20° to 50° C (-4° to 122° F)

• Ideal Storage Temperature: 22° to 30° C (71.6° to 86° F)

• Charging Temperature

-20° to 40° C (-4° to 104° F)
When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).

• Charging Time

With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

Intelligent Battery Station

• Dimensions: 580×358×254 mm (L×W×H)

• Net Weight: Approx. 8.98 kg

• Compatible Stored Items

Eight TB65 Intelligent Flight Batteries
Four WB37 Intelligent Batteries

• Input Voltage

100-120 VAC, 50-60 Hz
220-240 VAC, 50-60 Hz

• Max Input Power: 1070 W

• Output Power

100-120 V: 750 W
220-240 V: 992 W

• Operating Temperature: -20° to 40° C (-4° to 104° F)

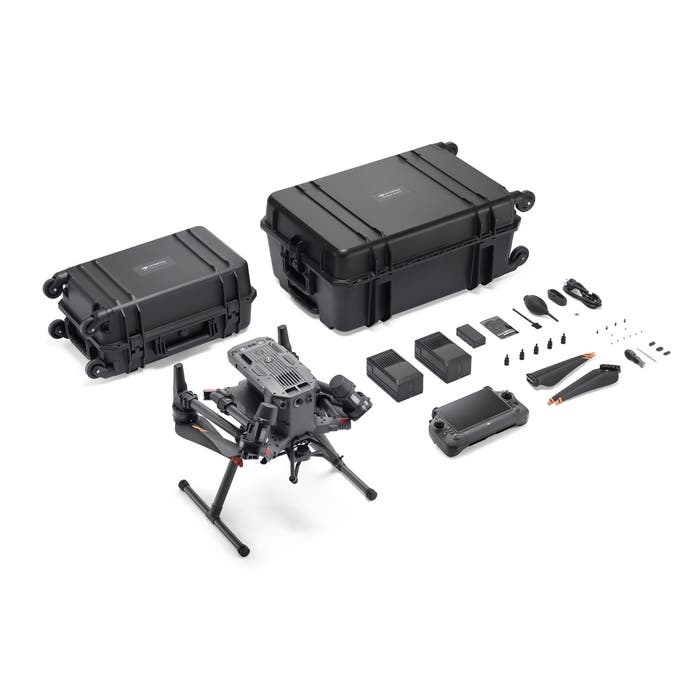

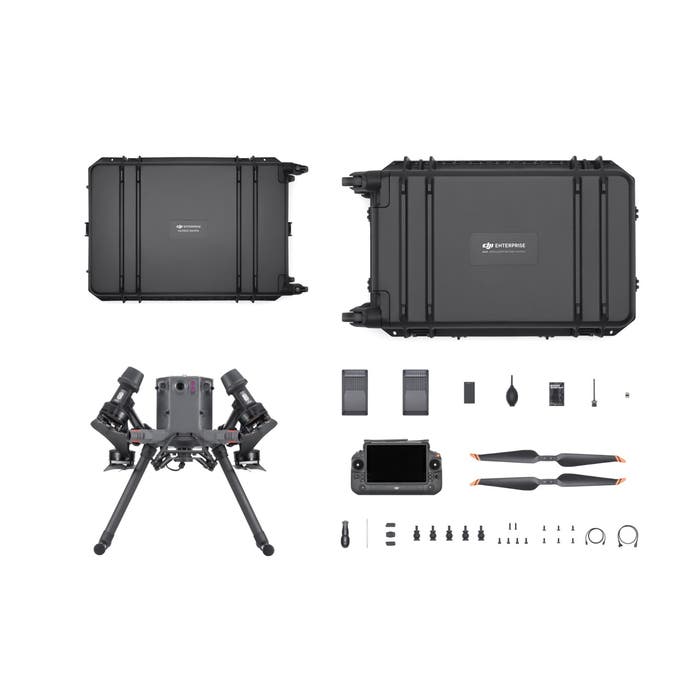

IN THE BOX

• 1x Matrice 350 Aircraft
• 1x DJI RC Plus
• 1x WB37 Intelligent Battery
• 1x Carrying Case
• 2x Landing Gear
• 1x Matrice 350 RTK 2110s Propellers (Pair)
• 1x Screws and Tools
• 1x Cleaning Tools
• 1x Spare Gimbal Damper
• 1x Rubber Port Cover (Set)
• 1x Screws and Tools
• DJI Care Plus (M350 RTK)

Key Features

• Superior Flight Performance: 55 minutes of maximum flight time and 20 km transmission range.
• Innovative Safety Features: Arm lock detection, 6-directional obstacle sensing, and night-vision FPV camera.
• Flexible Payload Compatibility: Supports single downward gimbal, dual gimbals, and an upward gimbal configuration.
• Advanced Power System: Dual-battery system with hot-swapping and up to 400 charging cycles.
• Smart and Efficient Operations: Integrated with DJI Pilot 2 and FlightHub 2 for real-time mapping and automated inspections.

Detailed Specification

Aircraft Specifications

Attribute	Details
Dimensions (Unfolded)	810×670×430 mm
Dimensions (Folded)	430×420×430 mm
Weight (with batteries)	Approx. 6.47 kg
Max Payload	2.7 kg
Max Flight Time	55 minutes
Max Horizontal Speed	23 m/s
Max Wind Resistance	12 m/s
GNSS	GPS, GLONASS, BeiDou, Galileo
Ingress Protection	IP55

Remote Controller

Attribute	Details
Screen	7.02-inch LCD touchscreen (1920×1200 resolution)
Battery Life	Built-in: 3.3 hours; Built-in + External WB37: 6 hours
Ingress Protection	IP54
Transmission Range	Up to 20 km (FCC)

Intelligent Flight Battery

Attribute	Details
Model	TB65
Capacity	5880 mAh
Voltage	44.76 V
Charging Time	60 minutes (220V); 70 minutes (110V)

Supported Payloads

Payload	Details
Zenmuse H20 Series	Multisensor payload for inspections
Zenmuse P1	Full-frame photogrammetry
Zenmuse L1	LiDAR mapping

In Package

• 1x Matrice 350 RTK Aircraft
• 1x DJI RC Plus Remote Controller
• 1x WB37 Intelligent Battery
• 1x Carrying Case
• 2x Landing Gear
• 1x Matrice 350 RTK 2110s Propellers (Pair)
• 1x Screws and Tools Set
• 1x Cleaning Tools Set
• 1x Spare Gimbal Damper
• 1x Rubber Port Cover Set
• DJI Care Plus (M350 RTK)

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Shipping

General Shipping Info:

• Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
• Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
• Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx).
• Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
